Introduction:

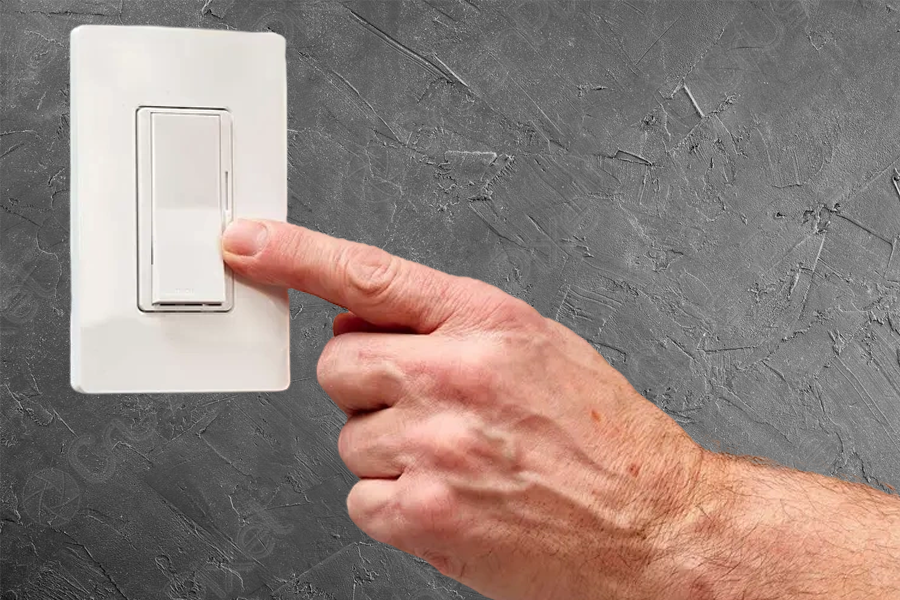

Dimming your LED Lights can make your home, office, or workspace more comfortable and inviting. One of the great features, of most LED Lights, is the ability to dim them. But with several different LED dimming methods available, choosing the right one can be confusing. If you’re asking yourself ‘How Do I Dim LED Lights?’, this article is for you.

In this article, we’ll introduce you to the different methods available for dimming LEDs, including Triac Dimming, DALI Dimming, and Wireless 0-10v Dimming. We’ll outline how these methods work and review their advantages and disadvantages. So, let's dive into the world of LED dimming and take a look at the various methods to bring new levels of control, comfort, and creativity to your space.

Summary Of The Most Common LED Dimming Options Available In 2023:

1. Phase-Cut & Triac Dimming:

One of the most common methods for dimming LED light fixtures, Phase-Cut and Triac Dimming are very similar, but not exactly the same (more on that below). These dimming methods work by reducing the amount of electrical current being supplied to a fixture, which in turn dims the brightness of the LED lights. Phase-Cut & Triac Dimming light dimmer switches chop up the AC waveform, allowing only a portion of the voltage to be supplied to the LED fixture.

2. Pulse Width Modulation (PWM) Dimming:

PWM Dimming works by pulsing the current to the LEDs on and off at a high frequency, which the effective voltage being supplied to the LEDs. This voltage reduction dims the lights and is often found in LED fixtures with built-in controllers.

3. DALI Dimming & Lighting Controls:

Digital Addressable Lighting Interface (DALI) is a protocol for digital communication between lighting fixtures and controllers. DALI dimming allows for precise and individual control of LED Light Fixtures, enabling them to be dimmed or turned on and off separately. This method is commonly used in commercial and industrial settings.

4. 0-10V Dimming & Lighting Controls:

This method involves using a control device that supplies a voltage between 0 and 10 volts to the LED driver, with 10 volts representing maximum brightness and 0 volts representing minimum brightness. This method has become the most used dimming method for lighting controls in commercial and industrial settings.

5. Wireless Dimming & Lighting Controls:

This method involves using a wireless communication protocol such as the recently developed Bluetooth Low Energy (BLE), original Bluetooth (also known as Bluetooth Classic) or Zigbee (used with DALI) to control the brightness of LED fixtures. This method is becoming increasingly popular for both DALI and 0-10v Dimming.

Overall, the method used to dim an LED fixture will depend on the fixture type, the LED driver, and the specific needs and requirements of your application. Each method has its advantages and disadvantages, and in most cases, the dimming choice depends on factors such as compatibility, cost, and ease of use.

Phase-Cut Dimming & Triac Dimming:

Phase-Cut Dimming & Triac Dimming are closely related concepts, but they are not exactly the same thing.

Phase-Cut Dimming is a method of dimming LED light fixtures that works by reducing the amount of electrical current being supplied to the fixture. This is done by using a light dimmer switch for LED which chops up the AC waveform, allowing only a portion of the voltage to be supplied to the LED fixture. This method is also called "leading-edge" dimming because it cuts off the leading edge of the AC waveform.

Triac Dimming, on the other hand, is a type of phase-cut dimming that uses a specific type of electronic switch called a triac to chop up the AC waveform. Triac Dimming is also a type of "leading-edge" dimming that is commonly used in residential and commercial settings for dimming LED Light Bulbs and LED Pot Lights.

While Phase-Cut Dimming & Triac Dimming are closely related, not all Phase-Cut Dimming is Triac Dimming. Phase-cut dimming can also use other types of electronic switches, such as MOSFETs or IGBTs. However, Triac Dimming is one of the most common types of phase-cut dimming, particularly in residential and commercial lighting applications.

In summary, Phase-Cut Dimming and Triac Dimming are related concepts, but they are not the exact same thing. Triac Dimming is a type of Phase-Cut Dimming that uses a specific type of electronic switch, such as an LED Pot Light dimmer switch, but other types of electronic LED compatible dimmer switches can also be used for Phase-Cut Dimming.

Phase-Cut And Triac Dimming are common methods for dimming LED Pot Lights and Lamps, but they come with both advantages and disadvantages.

Advantages:

• Cost-Effective: Phase-Cut Dimming & Triac Dimming are relatively simple and cost-effective methods for dimming LED fixtures, as they use a standard dimmer switch for LED lights that is both widely available and affordable.
• Wide Compatibility: Phase-Cut Dimming & Triac Dimming are compatible with a wide range of LED fixtures and drivers, making them versatile dimming methods for use in a variety of applications. Most LED packaging will tell you if the fixture is compatible with Phase-Cut Dimming or Triac Dimming, and will provide you with a list of light dimmer switches that work with the fixture.
• Smooth Dimming: Phase-Cut Dimming & Triac Dimming provide smooth and continuous dimming without flicker, until certain levels are reached, or noticeable changes in colour temperature. This makes them a good choice for applications where visual comfort is important.
• Increased Energy Efficiency: Whenever LED fixtures are dimmed, their energy consumption is lowered, resulting in additional energy savings through lower operating costs.

Disadvantages:

• Limited Low-Level Dimming Range: Phase-Cut Dimming & Triac Dimming have a limited range of dimming. At lower levels, flickering or instability can occur in some LED fixtures, which can be a concern in cases where lower light levels are wanted. This is because LEDs have a nonlinear relationship between the applied voltage and the light output, leading to flickering or uneven light output when a fixture is dimmed to lower levels. In some cases, this limitation requires the use of additional equipment, such as specialized LED drivers, to provide more stable and uniform dimming.
• Limited Compatibility With Some LED Drivers: Phase-Cut Dimming & Triac Dimming are not compatible with all LED drivers. Some LED drivers, such as 0-10v dimming drivers, may not be designed to work with phase-cut dimming, or they may require specific types of light dimmer switches or control systems to operate properly. This can limit the selection of LED fixtures and dimming equipment that can be used in a particular application. It is important to check the compatibility of a switch with your LED Fixture, or Light Bulb, before purchasing it.
• Acoustic Noise: In some cases, Phase-Cut Dimming & Triac Dimming can cause an audible buzzing or humming noise in the LED fixture or dimmer switch. This happens when the switching of the AC waveform creates electromagnetic interference that generates an acoustic noise. This can be a concern in quieter environments or when multiple fixtures are being controlled by a single dimmer switch.
• Limitations On The Number Of Fixtures: Phase-Cut Dimming & Triac Dimming have limitations on the number of fixtures that can be connected to a single dimmer switch. This is because the dimmer switch operates by chopping up the AC waveform, and the resulting waveform can cause electrical interference or instability when too many fixtures are connected to a single switch. This can limit the usefulness of Phase-Cut Dimming and Triac Dimming in large-scale applications or installations where multiple fixtures need to be controlled simultaneously.

Overall, while Phase-Cut Dimming & Triac Dimming are popular and cost-effective methods for dimming LED fixtures and bulbs, they have some limitations and drawbacks that need to be considered. The specific limitations will depend on the LED Fixtures, the dimming equipment being used, and the specific application requirements you are looking at.

Pulse Width Modulation:

Pulse Width Modulation (PWM) is a method for dimming LED Light Fixtures that works by rapidly switching the LEDs on and off to control the amount of light output. Here are some of the advantages and disadvantages of PWM dimming:

Advantages:

• High Dimming Precision: PWM Dimming provides high precision in controlling the dimming levels of LED light fixtures. By rapidly switching the LEDs on and off, PWM delivers a wide range of precise dimming levels with smooth transitions between them.
• No Flicker: PWM dimming provides flicker-free operation of LED light fixtures, as the LEDs are switched on and off so rapidly that the human eye does not detect any flicker.
• Energy Efficient: Like all dimming methods, PWM dimming increases the energy efficiency of an LED Fixture. As the LED Fixtures are being turned on and off very rapidly, they consume less energy than they do when being supplied with a continuous voltage.
• Compatible With Many LED Drivers: PWM dimming is compatible with many LED drivers and can be easily integrated into existing lighting systems. Make sure to check the LED Fixture spec sheet for PWM compatibility.

Disadvantages:

• Acoustic Noise: Much like Phase-Cut & Triac Dimming, PWM Dimming can produce an audible buzzing or humming noise in some LED fixtures. This is due to the rapid switching on and off of the LEDs, which can produce electromagnetic interference.
• Colour Distortion: In some cases, PWM dimming may cause colour distortion in the LED light output, particularly in fixtures that have multiple colour temperatures. This is because the LEDs are being switched on and off so rapidly that the colour output becomes affected.
• High-Frequency Noise: PWM dimming can produce high-frequency noise in some LED fixtures, which can interfere with nearby electronic equipment.
• Dimmer Switch Compatibility: PWM dimming may not be compatible with all LED dimmer switches. Specialized PWM dimmer switches or controllers may be required to ensure compatibility with the LED fixtures and drivers.

Overall, PWM dimming is an effective method for dimming LED light fixtures and offers high precision and energy efficiency. However, the potential for colour distortion and acoustic noise, are limitations that need to be considered when selecting a dimming method.

DALI Dimming and Lighting Controls:

DALI (Digital Addressable Lighting Interface) is a digital communication protocol that is widely used for dimming and overall LED lighting control. There are two ways to implement DALI; wired and wireless. Here are some of the advantages and disadvantages of both DALI methods for LED lighting controls:

Wired DALI:

With Wired DALI the controls are connected by wiring them together. Here are some of the advantages of Wired DALI Dimming:

Advantages:

• Precise Control: Wired DALI provides precise and individual control of each LED fixture. This enables each fixture to be dimmed or turned on and off separately, allowing for greater control over lighting levels and energy consumption.
• Expandable: Wired DALI is an expandable system that can accommodate many LED fixtures, making it suitable for use in larger-scale applications.
• Reliable: Wired DALI is a reliable communication protocol that provides stable and consistent communication between the fixtures and the controller. It is less prone to interference or signal loss than wireless communication protocols.
• Compatibility: Wired DALI is compatible with a wide range of LED fixtures and drivers, making it a versatile lighting control method that can be used in many different applications.

Disadvantages:

• Cost: Wired DALI lighting controls can be more expensive than other lighting control methods, especially for small-scale applications. Wired DALI lighting controls require specialized wiring and equipment which adds to the overall cost of the system.
• Installation: Wired DALI lighting controls can be more difficult to install than other lighting control methods, especially in existing buildings where running new wiring may be challenging.
• Flexibility: Wired DALI lighting controls are less flexible than wireless controls, as the physical wiring can limit the placement and movement of the fixtures. This may limit the design possibilities for the lighting system.
• Maintenance: Wired DALI lighting controls require more maintenance than wireless controls, as the physical wiring can be more susceptible to damage and wear over time.

Overall, wired DALI is an effective method for LED lighting controls that provides precise and reliable control of each fixture. However, limitations and drawbacks, such as cost, installation complexity, and flexibility, need to be considered when selecting this lighting control method. Wired DALI is often preferred for large-scale commercial and industrial lighting applications where reliability and precise control are important factors.

Wireless DALI:

Wireless DALI is a digital communication protocol that allows for wireless control of LED light fixtures. Here are some of the advantages and disadvantages of wireless DALI LED lighting controls:

Advantages:

• Easy Installation: Wireless DALI lighting controls are easier to install than wired controls. With no need for wiring or cabling, between the fixtures and the controller, material and labour costs are significantly lower than the wired option.
• Flexible Design: Wireless DALI lighting controls deliver greater flexibility than wired controls, as they allow for more freedom in fixture placement and movement. This can be useful in applications where the lighting needs to be reconfigured or moved frequently.
• Expandable: Wireless DALI lighting controls are an expandable system that can accommodate a large number of fixtures, making them suitable for use in large-scale applications.
• Low Maintenance: Wireless DALI lighting controls are easier to maintain than wired controls, as there are no physical wires or cables that can be damaged or wear out over time.

Disadvantages:

• Signal Interference: Wireless DALI lighting controls can be affected by signal interference from other wireless devices or environmental factors such as metal structures, which can impact the reliability of the system.
• Range Limitations: Wireless DALI lighting controls have a limited range, which may require the use of additional repeaters or signal boosters to extend the range of the system.
• Compatibility: Wireless DALI lighting controls may not be compatible with all LED fixtures and drivers, and some may require specific types of DALI-compatible equipment to function properly.
• Cost: Wireless DALI lighting controls can be more expensive than other wireless controls, especially for large-scale applications where additional repeaters or signal boosters may be required.

Overall, wireless DALI is a flexible and easy-to-install method for LED lighting controls that provides greater freedom in fixture placement and movement. However, it has some limitations and drawbacks, such as signal interference, range limitations, and compatibility issues that need to be. Wireless DALI is often preferred for smaller and medium-scale commercial applications where flexibility and ease of installation are important factors.

0-10v Dimming:

0-10V Dimming & Lighting Controls are a method of controlling the light output of LED fixtures by adjusting the voltage supplied to the fixture between 0 and 10 volts. Like DALI, 0-10v Dimming can be implemented both wired and wirelessly. Here are some of the advantages and disadvantages of Wired and Wireless 0-10V lighting controls:

Wired 0-10v Dimming:

Wired 0-10V lighting controls are a method of controlling the light output of LED fixtures by adjusting the voltage supplied to the fixture between 0 and 10 volts through wired control signals. Here are some of the advantages and disadvantages of wired 0-10V lighting controls:

Advantages:

• Precise Dimming Capabilities: Wired 0-10V LED lighting controls allow for precise dimming of LED fixtures. This allows users to create different lighting scenes and moods, providing greater flexibility and control over their lighting system.
• Improved Lighting Quality: Wired 0-10V LED lighting controls can significantly improve the quality of the lighting in your space. Because 0-10v dimming is so precise, users can adjust a fixture’s light output to their desired level, creating a more comfortable and aesthetically pleasing environment.
• Better Energy Savings: Wired 0-10V LED lighting controls can help users save energy and reduce their energy bills. When LED lighting is dimmed, users significantly reduce energy consumption, resulting in lower operating costs over time.
• Increased Productivity: Proper lighting can have a significant impact on productivity. By customizing lighting levels, users can create an environment that is conducive to productivity and focus, resulting in improved performance and efficiency.
• Improved Aesthetics: Wired 0-10V LED lighting controls can be used to create different lighting scenes and moods, resulting in a more aesthetically pleasing environment. By adjusting the light levels and color temperature, users can create a space that is comfortable and inviting.
• Compatibility: Wired 0-10v dimmer switches and lighting controls are compatible with most Commercial and Industrial LED fixtures available today.

Disadvantages:

• Cost: Wired 0-10V lighting controls are more expensive to install when compared to wireless lighting controls, especially in small-scale applications. The labour and materials costs of specialized wiring and equipment add to the overall cost of the system.
• Installation: Wired 0-10V lighting controls can be more difficult to install than wireless controls, especially in existing buildings where running new wiring may be challenging.
• Flexibility: Wired 0-10V lighting controls are less flexible than wireless controls, as the physical wiring limits the placement and movement of the fixtures. This may limit the design possibilities for the lighting system.
• Maintenance: Wired 0-10V lighting controls require more maintenance than wireless controls, as the physical wiring can be more susceptible to damage and wear over time.
• Voltage Drop: Wired 0-10V lighting controls can be affected by voltage drop, which occurs when the voltage supplied to the lighting fixtures decreases over the length of the wiring between the controller and the fixtures. Voltage drop occurs due to the resistance of the wiring, which causes a voltage decrease as the electrical current flows through the wiring. When the voltage supplied to the lighting fixtures is lower than what is desired, the fixture produces dimmer light output than intended.

Overall, wired 0-10V lighting controls are an effective method for dimming and controlling the light output of LED fixtures. Wired 0-10v dimming provides linear dimming and is compatible with a wide range of commercial and industrial LED fixtures and drivers. However, there are some limitations and drawbacks, such as cost, installation complexity, flexibility, and voltage drop to be considered. Wired 0-10V lighting controls are often preferred for large-scale commercial and industrial lighting applications where reliability and precise control are important factors.

Wireless 0-10V Dimming:

Wireless 0-10V Dimming & Lighting Controls are a method used to control the light output of LED fixtures by adjusting the voltage supplied to the fixture between 0 and 10 volts through wireless control signals. The recent development of 0-10v Bluetooth Low Energy (BLE) Wireless Mesh controls has made this a very affordable and popular choice for dimming and controlling LED Fixtures. Here are some of the advantages and disadvantages of wireless 0-10V lighting controls:

Advantages:

• Ease Of Installation: Wireless 0-10V lighting controls are faster and easier to install than wired controls. With no need for additional wiring or cabling between the fixtures and the controller, the installation cost is significantly lower. Today’s controllers are installed directly on or in an LED fixture, saving time and money during installation.
• Flexible Design: Wireless 0-10V lighting controls are more flexible than wired controls, as they allow for more freedom in fixture placement and movement. This can be useful in applications where the lighting needs to be reconfigured or moved frequently.
• Linear Dimming: Wireless 0-10V lighting controls provide linear dimming, which means that the light output of the fixture changes linearly with the voltage supplied. This can be useful in applications where precise control over light levels is important.
• Affordable: Wireless 0-10V lighting controls are the most affordable wireless control system, as they use simple equipment and wireless communication protocols that are widely available and cost-effective.
• Reliability: By utilizing a mesh communication network, signals are repeated through multiple controllers to ensure reliable performance.
• Scalability: BLE Mesh 0-10v dimming is highly scalable to the point where an unlimited number of controllers and switches can be installed in a facility.
• Ease Of Use: BLE wireless controls are easily programmed from a desktop or mobile app. Adjustments can be quickly made, and performance can be easily monitored.
• Security: Today’s wireless 0-10v dimming systems operating on a BLE network do not require a router or connection to the internet to set up, program, or operate, leaving your computer network untouched.

Disadvantages:

• Signal Interference: Wireless 0-10V lighting controls can be affected by signal interference from other wireless devices or environmental factors such as some machinery or metal structures, which can impact the reliability of the system.
• Range Limitations: Wireless 0-10V lighting controls have a limited range, which may require the use of additional boosters if controllers as spaced too far apart.
• LED Driver Compatibility: Wireless 0-10V lighting controls are not compatible with all LED drivers, and some may require a specific type of dimming technology or driver to function properly.

Overall, wireless 0-10V lighting controls are a flexible and easy-to-install method for controlling the light output of LED fixtures. This dimming method is compatible with the widest range of commercial and industrial LED fixtures and drivers. However, some limitations, such as signal interference, and range limitations need to be considered when selecting a lighting control method. The flexibility and ease of installation of wireless 0-10V lighting controls see this method becoming the preferred choice for commercial lighting applications of all sizes.

Conclusion:

Choosing the right way to dim your LED Fixtures can be confusing, but it starts with ensuring the compatibility of your fixture with the dimming method you’d like to use. As time goes by, more dimming options are coming available which provide us with easier and more affordable methods to control LED output and operation.
