Product Description

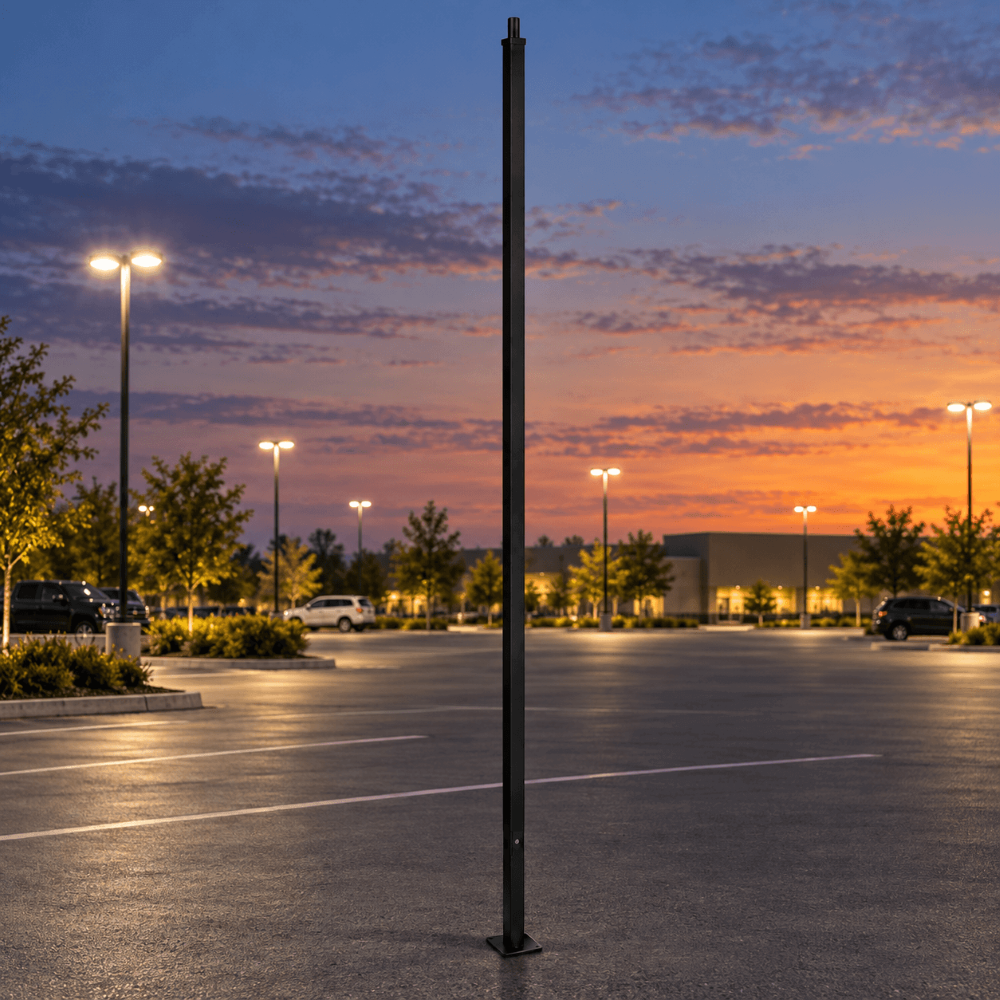

24ft 4" Square Steel Heavy-Duty Tenon Pole | LED Network
The WS-SSS-4424-AB-TN straight square steel light pole delivers an adaptable, heavy-duty mounting foundation designed for major commercial parking facilities, recreational outdoor sports courts, and industrial perimeters. At 24 feet in height, this pole provides the photometric reach required to flood extensive footprints with uniform footcandles, significantly improving night-time safety while keeping glare well above driver sightlines.
Manufactured in Canada using commercial-quality weldable cold-rolled square steel tubing, this 235 lb structural assembly is engineered to withstand demanding Canadian weather, severe wind shears, and sub-zero temperatures. Upgraded with four 7/8" x 30" galvanized anchor bolts (24 lbs/set), it provides solid foundation stability. Fitted with an industry-standard 2-3/8" outside diameter (O.D.) top tenon, this pole accepts standard slipfitter floodlights and readily pairs with multi-head bullhorns—including 2-Light In-Line, 3-Light at 120°, 4-Light at 90°, and 4-Light In-Line configurations.
Each pole is custom-fabricated and finished to your specifications with a protective powder coat in classic Black, crisp White, or architectural Dark Bronze for long-term resistance against UV degradation, chipping, and de-icing chemicals. Backed by full CSA certification, the pole includes an integrated 3" x 6" wiring handhole, a form-fitting 2-piece base cover, and four galvanized anchor bolts.
Please note: Poles are fabricated and powder-coated to order and carry a lead time from order to shipping. Lead times vary based on the quantity of poles in the production schedule at the time of order.
Key Features & Specifications
- Commercial Steel Construction: Fabricated from weldable-grade cold-rolled square steel tubing, delivering 235 lbs of rugged mechanical strength and structural rigidity.
- CSA Rated & Canadian Made: Manufactured and certified in Canada to meet stringent CSA standards for commercial and institutional infrastructure.
- Standard 2-3/8" Top Tenon: Integrated 2-3/8" O.D. top tenon designed to mount adjustable slipfitter area fixtures, architectural floodlights, or structural bullhorns.
- Bullhorn Compatibility: Readily pairs with 2-Light In-Line, 3-Light at 120°, 4-Light at 90°, or 4-Light In-Line bullhorn brackets for high-lumen, multi-directional area coverage.
- High-Shear Wind Load Rating: Engineered to carry heavy wind loads, rated for a maximum Effective Projected Area (EPA) capacity of 6.0 sq. ft. at 80 MPH and 3.5 sq. ft. at 100 MPH.
- Heavy-Duty Base & Anchor Kit: Features an 8" x 8" base plate with an 8" bolt circle diameter (BCD) and four 7/8" x 30" galvanized L-bend anchor bolts with hardware (24 lbs/set).
- Two-Piece Base Cover: Supplied with a matching steel 2-piece base cover that conceals anchor bolts and shields foundation hardware from elements and debris.
- Reinforced Handhole: Gasketed 3" x 6" handhole positioned 18" above the base plate with backing bar and stainless steel fasteners for secure wiring and grounding access.
-
Custom Powder-Coated Finish: Finished to specification in high-durability powder coat (available in Black, White, or Dark Bronze); hot-dip galvanized and custom RAL colours available upon request.
Technical Specifications Table
| Catalog Number | WS-SSS-4424-AB-TN |
|---|---|
| Nominal Height | 24' |
| Shaft Profile | 4" x 4" Straight Square |
| Material | Commercial-grade cold-rolled steel tubing |
| Mounting Type | 2-3/8" Outside Diameter (O.D.) Top Tenon |
| Base Plate Dimensions | 8" x 8" |
| Bolt Circle Diameter (BCD) | 8" |
| Anchor Bolt Size | 7/8" x 30" (Set of 4, 24 lbs) |
| Pole Weight | 235 lbs |
| EPA Rating (80 MPH / 100 MPH) | 6.0 sq. ft. / 3.5 sq. ft. |
| Handhole Dimensions | 3" x 6" reinforced handhole at 18" from base |
| Standard Finishes | Black, White, Dark Bronze (Powder Coated) |
| Certifications | CSA Rated, Made in Canada |
