12ft 4" Square Steel Pole, Arm Mount from LED Network

SKU: WS-SSS-4412-AB-BK-DRILL-NONE

Assembled To Order

Call 1-800-979-4223 For Your Quote

Color
Drill Pattern

Poles Are Fabricated & Powder Coated To Your Specifications

Checkout Secure

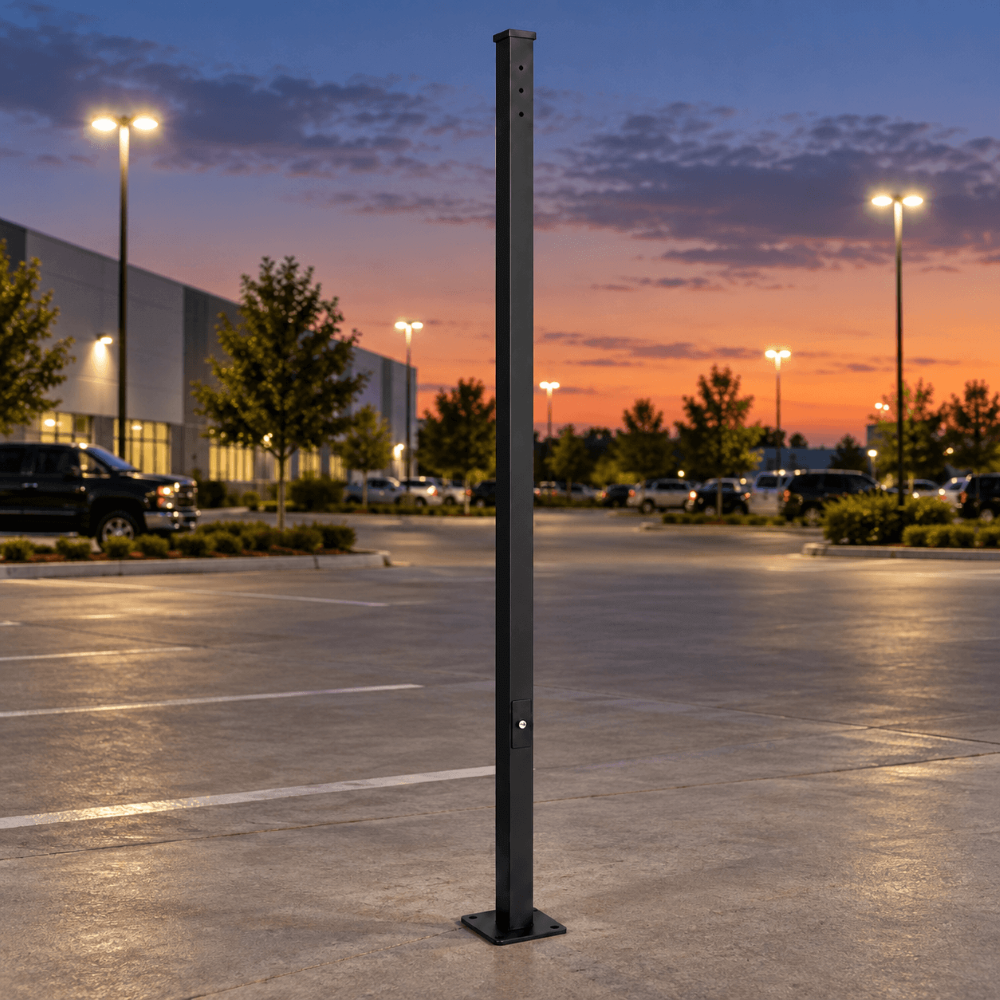

12ft 4" Square Steel Pole, Arm Mount | LED Network

Engineered specifically for low-glare perimeter illumination, commercial walkways, building entrances, and multi-residential pathways, the WS-SSS-4412-AB-DR delivers structural performance in a low-profile architectural footprint. At a nominal height of 12 feet, this straight square steel pole positions area lighting fixtures right at the critical sightline boundary—providing uniform illumination and superior vandal resistance without spilling light into surrounding properties or night skies.

Fabricated in Canada using high-strength, commercial-grade weldable cold-rolled steel tubing, this structural assembly is purpose-built to endure harsh Canadian weather environments. The pole shaft is pre-configured with side-drilled mounting patterns tailored for direct-mount horizontal straight-arm area fixtures and street luminaires, eliminating the need for bulky slipfitter adapters to maintain a clean, modern aesthetic.

Every pole undergoes an architectural-grade multi-stage finishing process and is available in durable powder-coated black, white, or dark bronze finishes. Backed by CSA certification, the assembly includes a reinforced handhole, matched 2-piece base cover, and heavy-duty galvanized L-bend anchor bolts to deliver turnkey structural integrity for contractors and specifiers alike.

Please note: Poles are fabricated and powder-coated to order and carry a lead time from order to shipping. Lead times vary based on the quantity of poles in the production schedule at the time of order.

Key Features & Specifications

  • Commercial Steel Construction: Fabricated from commercial-quality, weldable grade cold-rolled square steel tubing for reliable structural integrity.
  • CSA Certified & Canadian Made: Fully CSA rated and manufactured in Canada to meet stringent national building and electrical standards.
  • Mounting Configuration: Drilled for direct straight-arm area fixtures; available in Single Arm, 90° Twin, 180° Twin, Triple, Quad mounting configurations, or plain/no drill. Complete with top weather cap.
  • Wind Load Resistance (EPA Rating): Rated for maximum Effective Projected Area (EPA) of 11.5 sq. ft. at 80 MPH and 7.0 sq. ft. at 100 MPH.
  • Base Plate & Anchor Hardware: Includes an 8" x 8" structural steel base plate, standard 8" bolt circle diameter (BCD), and a complete set of four 3/4" x 24" galvanized anchor bolts with hardware (16 lbs/set).
  • 2-Piece Base Cover: Supplied with a protective matching two-piece square base cover to conceal base plate hardware and prevent environmental damage.
  • Reinforced Handhole: 3" x 6" reinforced handhole positioned 18" above the base plate, complete with a gasketed aluminum cover, backing bar, and stainless steel fasteners for convenient wiring access.
  • Architectural Finish: High-durability powder coat finish formulated for UV resistance and corrosion protection, available in Black, White, and Dark Bronze. Hot-dip galvanizing and custom RAL colours available upon request.

Technical Specifications Table

Catalog Number WS-SSS-4412-AB-DR
Nominal Height 12'
Shaft Profile 4" x 4" Straight Square
Material Commercial-grade cold-rolled steel tubing
Mounting Type Direct Arm Drill Pattern (with top weather cap)
Base Plate Dimensions 8" x 8"
Bolt Circle Diameter (BCD) 8"
Anchor Bolt Size 3/4" x 24" (Set of 4, 16 lbs)
Pole Weight 94 lbs
EPA Rating (80 MPH / 100 MPH) 11.5 sq. ft. / 7.0 sq. ft.
Handhole Dimensions 3" x 6" reinforced handhole at 18" from base
Standard Finishes Black, White, Dark Bronze (Powder Coated)
Certifications CSA Rated, Made in Canada
