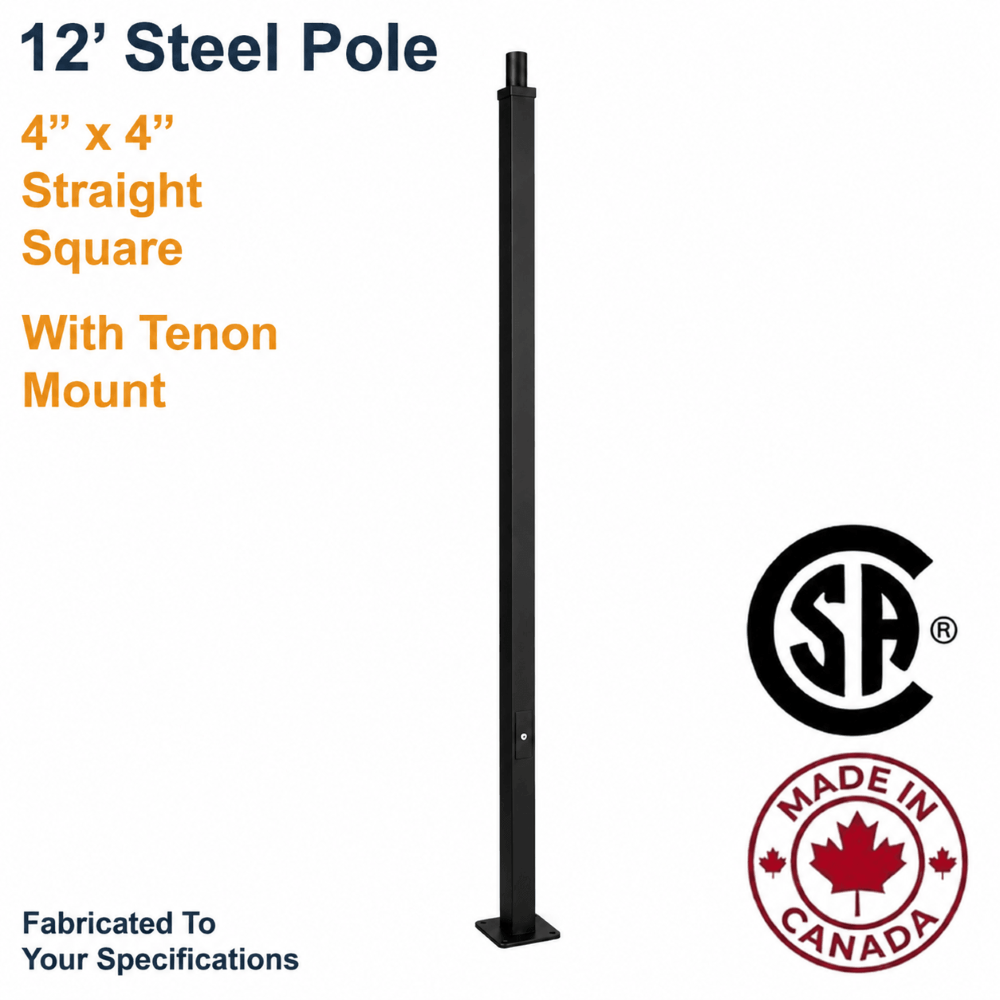

12ft 4" Square Steel Pole with Top Tenon | LED Network

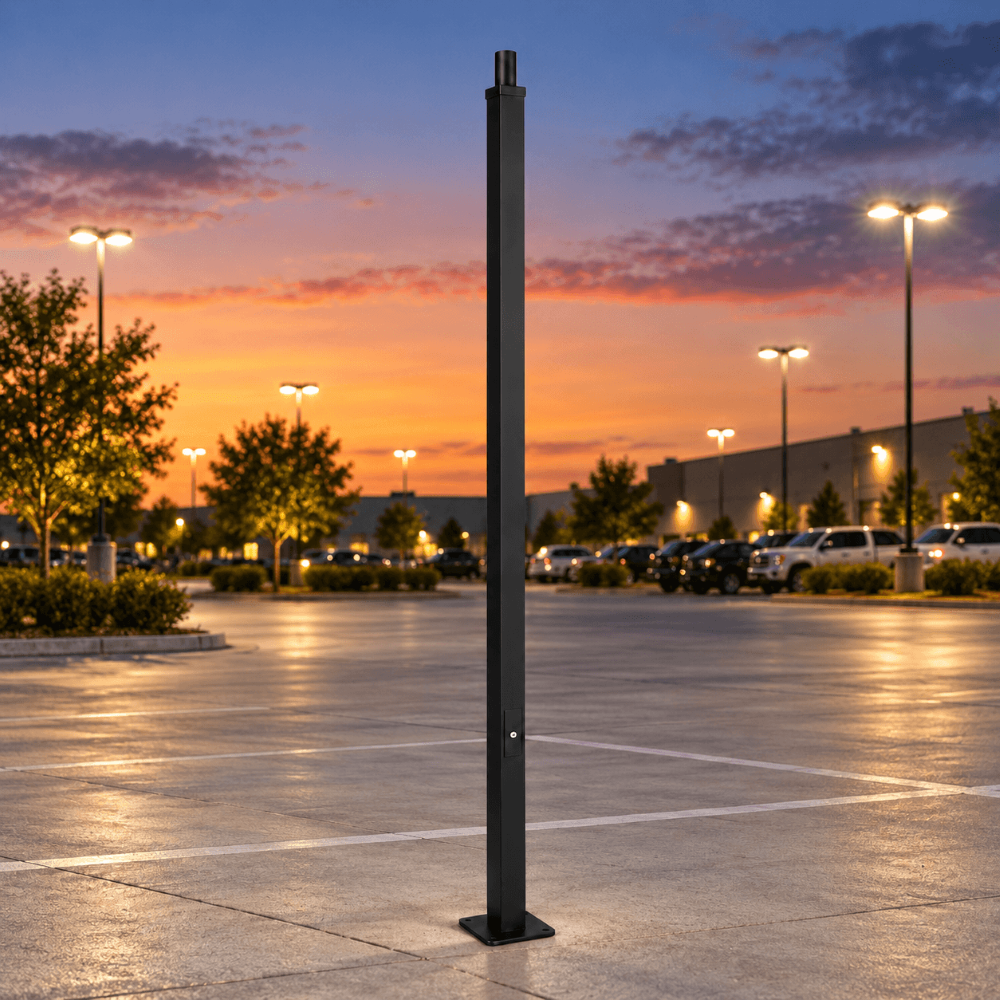

Engineered for pedestrian zones, commercial plazas, pathways, and directional security lighting, the WS-SSS-4412-AB-TN straight square steel pole provides a heavy-duty, versatile mounting foundation. At 12 feet in height, this pole is ideal for targeting light directly where it is needed while keeping fixtures safely accessible for maintenance. It accommodates adjustable slipfitter area fixtures, floodlights, and multi-head bullhorns without compromising architectural lines.

Built from commercial-grade weldable cold-rolled steel tubing in Canada, the WS-SSS-4412-AB-TN is engineered to stand up to severe wind speeds, heavy snow loads, and extreme temperature variations. Equipped with an industry-standard 2-3/8" outside diameter (O.D.) top tenon, this model offers maximum mounting versatility—allowing single slipfitter mounts or pairing with 2-light, 3-light, or 4-light bullhorns to maximize lumen output across plazas and walkways.

Each unit receives a multi-stage high-durability powder coat finish in black, white, or dark bronze, delivering long-term resistance against UV degradation, chipping, and road-salt corrosion. Fully CSA certified, the pole ships complete with a reinforced 3" x 6" service handhole, structural 2-piece base cover, and a full set of heavy-duty galvanized anchor bolts.

Please note: Poles are fabricated and powder-coated to order and carry a lead time from order to shipping. Lead times vary based on the quantity of poles in the production schedule at the time of order.

Key Features & Specifications

  • Commercial Steel Tubing: Fabricated from weldable-grade cold-rolled square steel to provide dependable rigidity and durability.
  • CSA Rated & Made In Canada: Manufactured and tested to meet rigid CSA safety standards for commercial infrastructure projects across Canada.
  • Standard 2-3/8" Top Tenon: Integrated 2-3/8" O.D. top tenon designed for standard fixture slipfitters or bullhorn accessories.
  • Bullhorn Compatibility: Easily expands fixture capacity using optional 2-Light In-Line, 3-Light at 120°, 4-Light at 90°, or 4-Light In-Line bullhorns.
  • Wind Resistance & EPA Ratings: Engineered for a max Effective Projected Area (EPA) of 11.5 sq. ft. at 80 MPH and 7.0 sq. ft. at 100 MPH.
  • Structural Base & Anchor Kit: Features an 8" x 8" base plate with an 8" bolt circle diameter (BCD). Supplied with four 3/4" x 24" galvanized L-bend anchor bolts (16 lbs/set).
  • Two-Piece Base Cover: Includes a durable, matching 2-piece steel base cover designed for fast assembly around the base plate.
  • Reinforced Handhole: Gasketed 3" x 6" handhole located 18" above base plate with backing bar and stainless steel hardware for fast wire pulling and inspection.
  • Industrial Powder Coating: Finished in high-durability outdoor powder coat (available in Black, White, or Dark Bronze); hot-dip galvanized and custom finishes available on request.

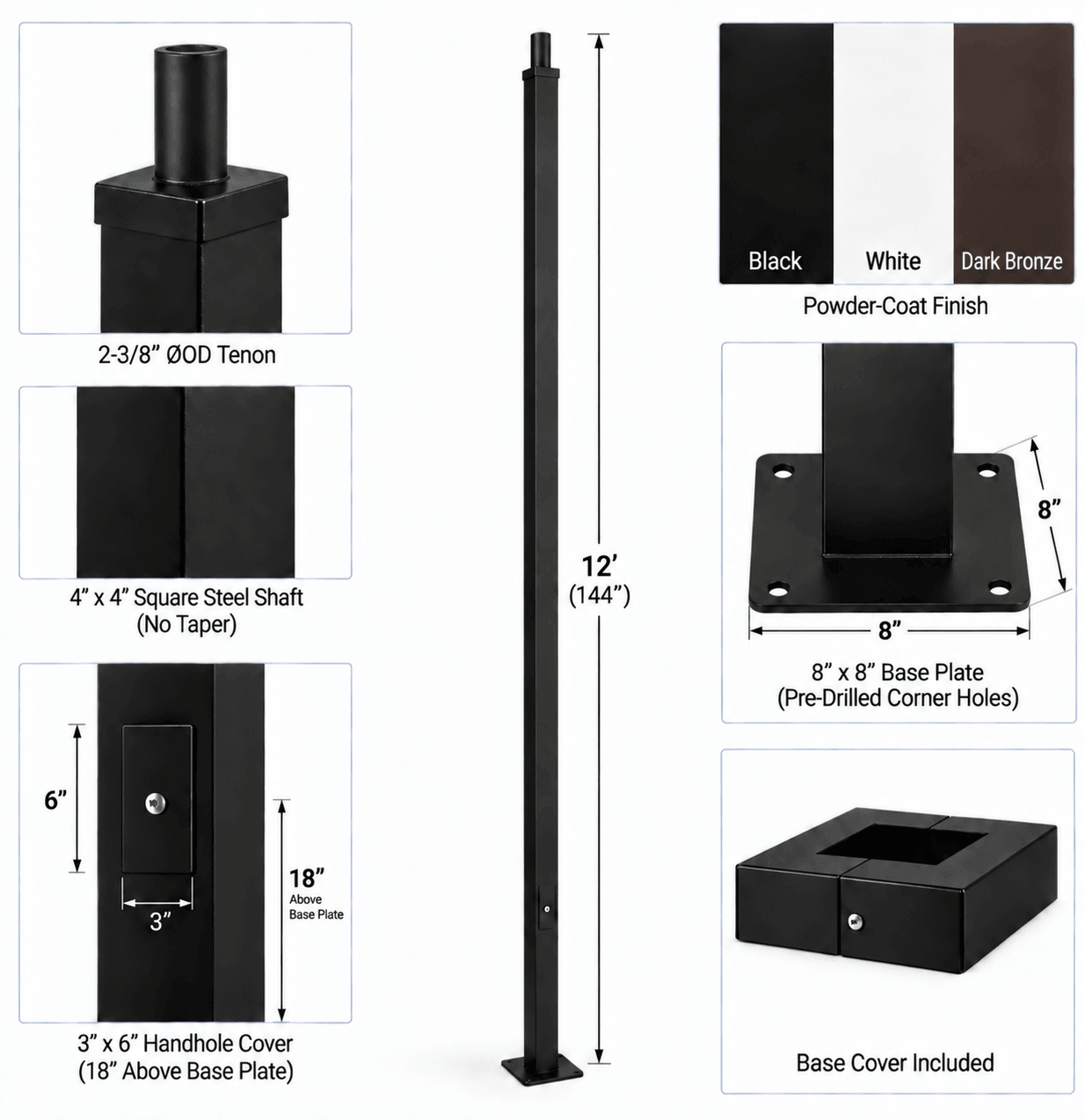

Technical Specifications Table

Catalog Number WS-SSS-4412-AB-TN
Nominal Height 12'
Shaft Profile 4" x 4" Straight Square
Material Commercial-grade cold-rolled steel tubing
Mounting Type 2-3/8" Outside Diameter (O.D.) Top Tenon
Base Plate Dimensions 8" x 8"
Bolt Circle Diameter (BCD) 8"
Anchor Bolt Size 3/4" x 24" (Set of 4, 16 lbs)
Pole Weight 94 lbs
EPA Rating (80 MPH / 100 MPH) 11.5 sq. ft. / 7.0 sq. ft.
Handhole Dimensions 3" x 6" reinforced handhole at 18" from base
Standard Finishes Black, White, Dark Bronze (Powder Coated)
Certifications CSA Rated, Made in Canada
