Product Description

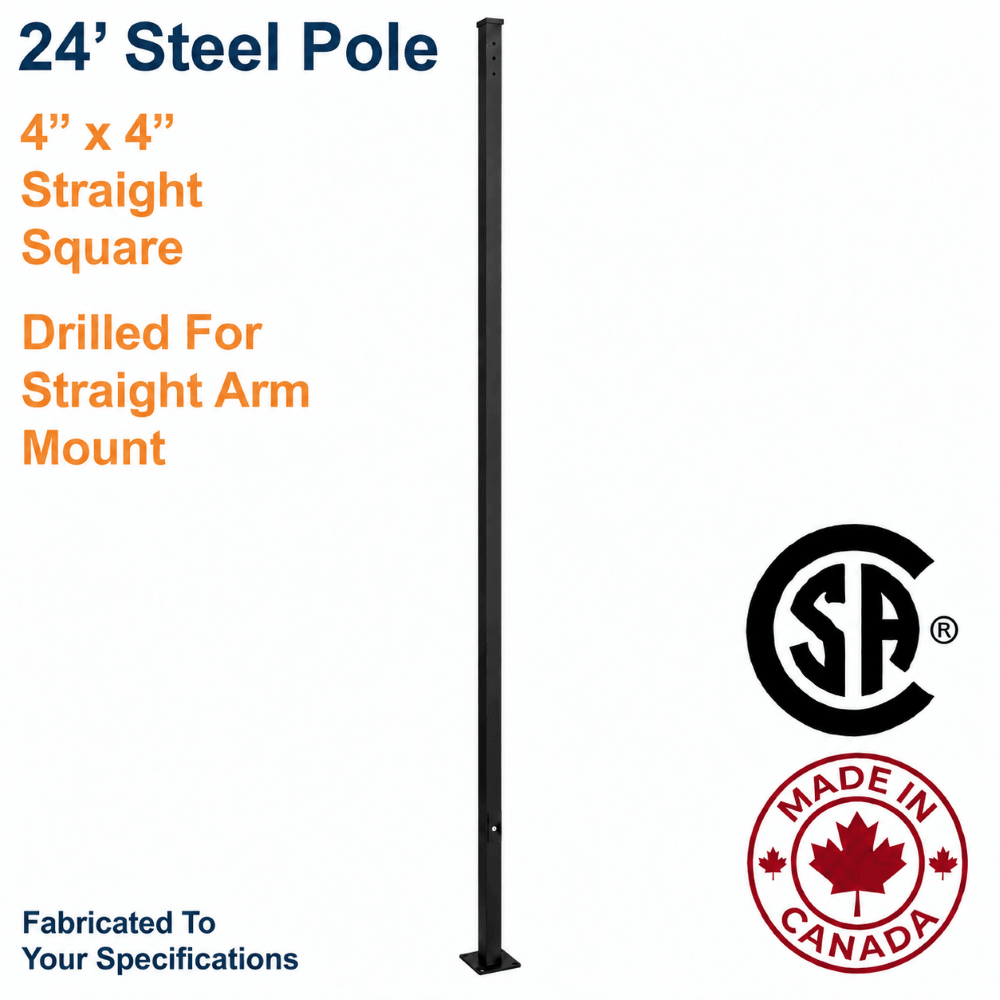

24ft 4" Square Steel Light Pole, Straight Arm | LED Network

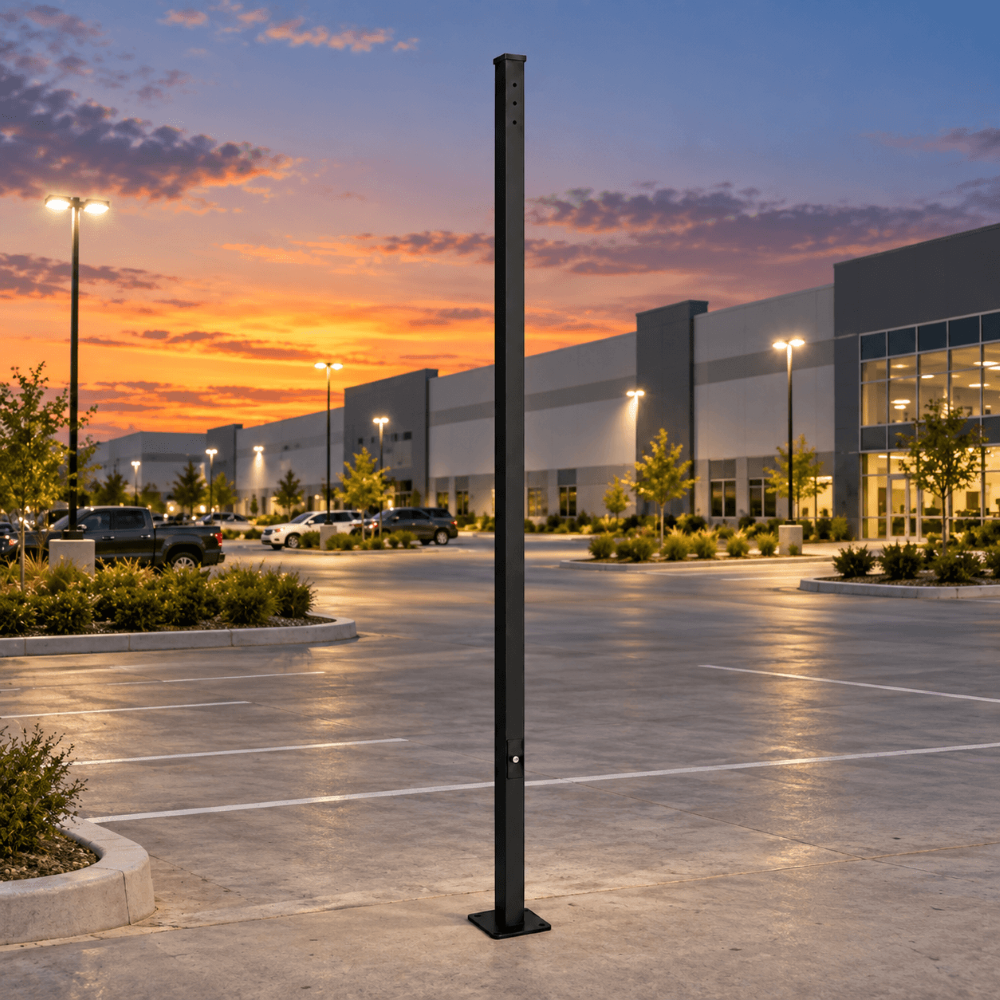

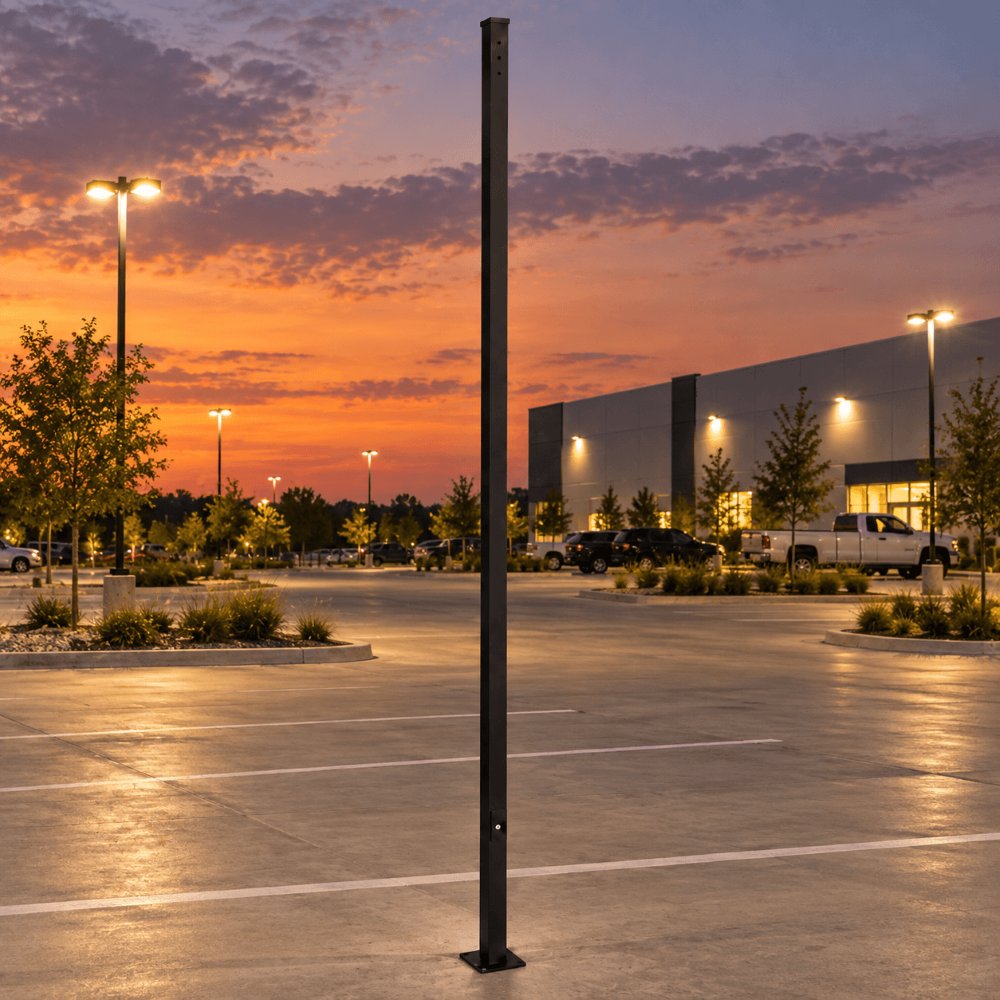

Engineered specifically for expansive commercial parking lots, logistics distribution yards, auto dealerships, and institutional campus roadways, the WS-SSS-4424-AB-DR delivers high-elevation illumination across wide expanses. Standing at a nominal height of 24 feet, this pole maximizes light distribution and footcandle uniformity while minimizing pole density across extensive vehicular surfaces.
Fabricated in Canada from commercial-quality, weldable grade cold-rolled square steel tubing, this 235 lb structural assembly is engineered to endure harsh northern winters, severe wind shear, and freeze-thaw cycles. To support higher structural demands at 24 feet, this model steps up to heavy-duty 7/8" x 30" galvanized anchor bolts with a dedicated 24 lb hardware set. The pole shaft comes precision side-drilled for clean, direct-mount horizontal straight arms—eliminating bulky external adapters to provide a streamlined, architectural profile with area luminaires. Available drill options include Single Arm, 90° Twin, 180° Twin, Triple, and Quad configurations, or plain/no drill.
Every pole is custom-fabricated and finished to client requirements in a multi-stage high-durability powder coat—available in Black, White, or Dark Bronze—formulated to resist UV fading, chipping, and de-icing salt corrosion. Backed by full CSA certification, this complete structural package includes a reinforced 3" x 6" handhole, a form-fitting 2-piece base cover, and four galvanized L-bend anchor bolts.
Please note: Poles are fabricated and powder-coated to order and carry a lead time from order to shipping. Lead times vary based on the quantity of poles in the production schedule at the time of order.
Key Features & Specifications
- Heavy-Duty Commercial Steel Construction: Fabricated from commercial-quality, weldable grade cold-rolled square steel tubing, providing a robust total pole weight of 235 lbs.
- CSA Certified & Canadian Made: Manufactured and certified in Canada to comply with rigid CSA standards for municipal, commercial, and industrial building codes.

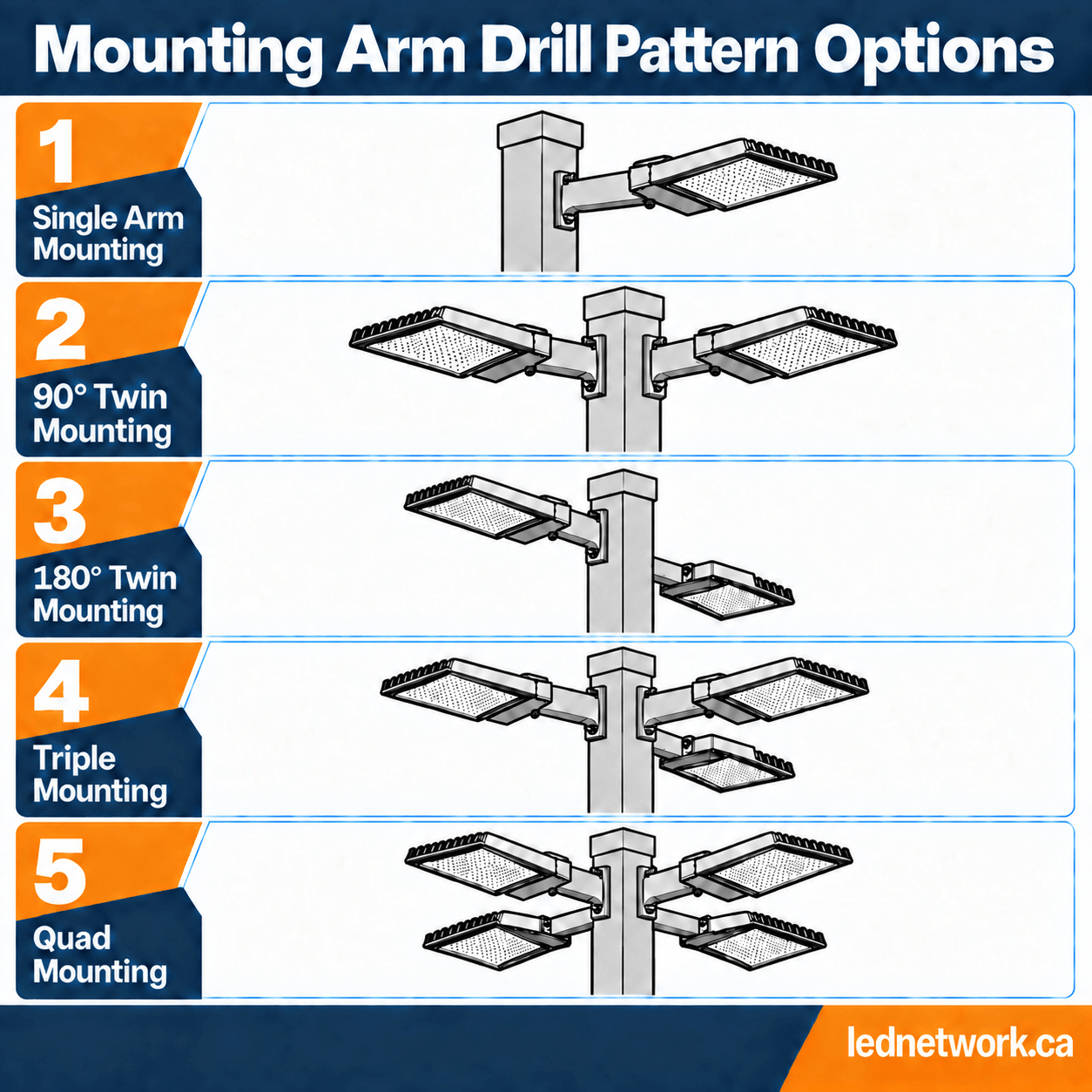

- Direct Straight-Arm Mounting: Factory side-drilled for horizontal straight-arm area luminaires; available in Single Arm, 90° Twin, 180° Twin, Triple, Quad patterns, or plain/no drill. Includes top weather cap.
- High-Shear Wind Load Rating: Engineered for high elevations with a maximum Effective Projected Area (EPA) capacity of 6.0 sq. ft. at 80 MPH and 3.5 sq. ft. at 100 MPH.

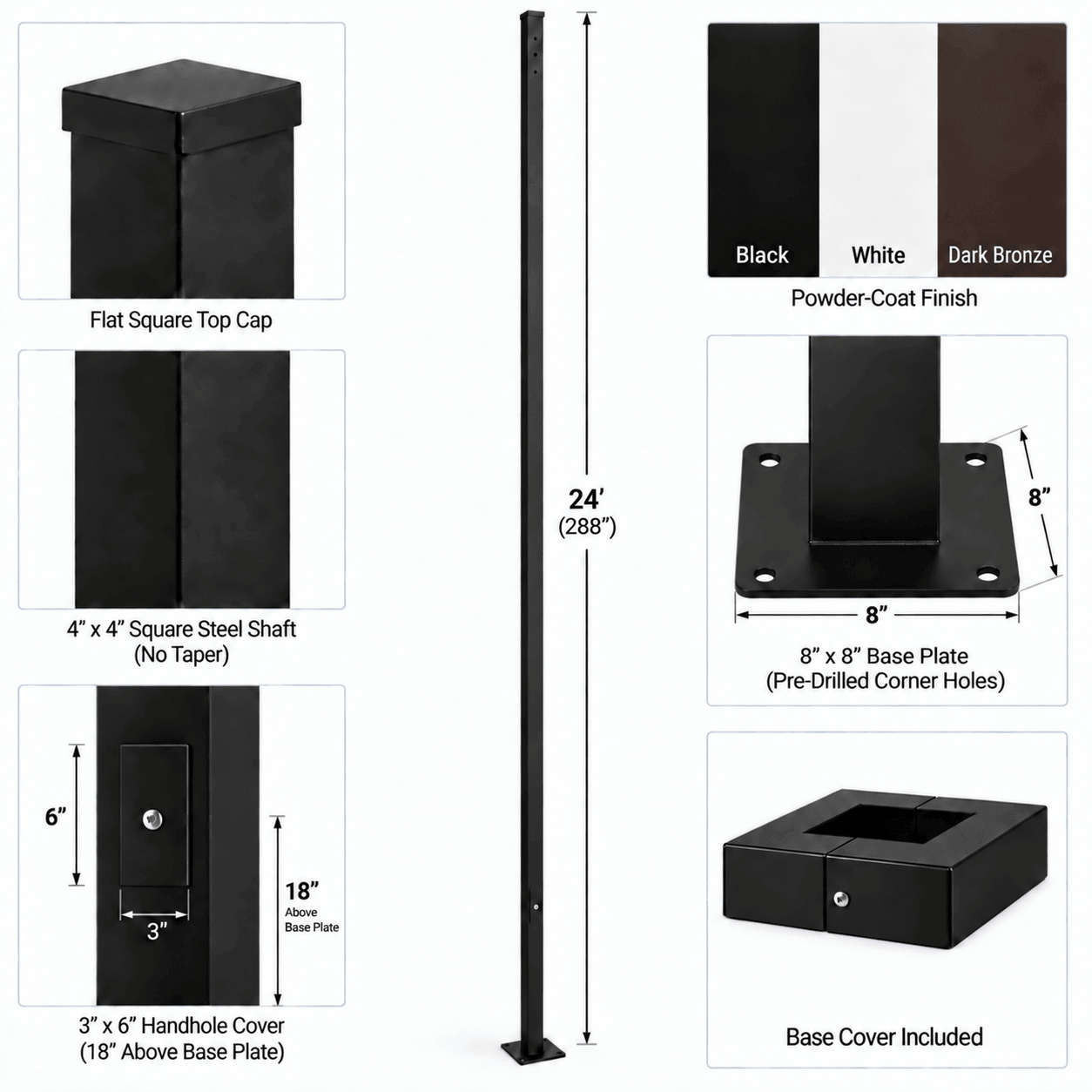

- Upgraded Anchor Hardware: Features an 8" x 8" structural base plate with an 8" bolt circle diameter (BCD), supplied with heavy-duty 7/8" x 30" galvanized L-bend anchor bolts (24 lbs/set).
- Two-Piece Protective Base Cover: Includes a durable, matching 2-piece steel base cover designed to wrap around the base plate, concealing hardware and protecting bolts from corrosion.
- Reinforced Handhole: Integrated 3" x 6" reinforced handhole positioned 18" above the base plate, complete with gasketed aluminum cover, backing bar, and stainless steel hardware for clean wiring splices.
- Custom Powder-Coated Finish: Powder-coated to project specifications in high-durability Black, White, or Dark Bronze; hot-dip galvanized and custom RAL colours available upon request.
Technical Specifications Table
| Catalog Number | WS-SSS-4424-AB-DR |
|---|---|
| Nominal Height | 24' |
| Shaft Profile | 4" x 4" Straight Square |
| Material | Commercial-grade cold-rolled steel tubing |
| Mounting Type | Direct Arm Drill Pattern (with top weather cap) |
| Base Plate Dimensions | 8" x 8" |
| Bolt Circle Diameter (BCD) | 8" |
| Anchor Bolt Size | 7/8" x 30" (Set of 4, 24 lbs) |
| Pole Weight | 235 lbs |
| EPA Rating (80 MPH / 100 MPH) | 6.0 sq. ft. / 3.5 sq. ft. |
| Handhole Dimensions | 3" x 6" reinforced handhole at 18" from base |
| Standard Finishes | Black, White, Dark Bronze (Powder Coated) |
| Certifications | CSA Rated, Made in Canada |
