At a Glance: What You Need to Know About Industrial Light Poles

Industrial sites demand more from their outdoor lighting than ordinary commercial properties. Between heavy vehicle traffic, exposed locations, demanding operating schedules, and Canada's unpredictable weather, every component needs to perform reliably. That includes the structure supporting the lights.

Heavy duty light poles provide the elevated, stable mounting points needed for effective industrial site illumination. Choosing the right pole involves much more than selecting a height and attaching a floodlight.

Here are the essentials:

• Structural strength matters: Industrial lighting poles must support their intended luminaires and mounting hardware while accommodating site-specific wind and environmental loads.

• Material selection affects longevity: Aluminum and galvanized steel offer different advantages in corrosion resistance, weight, maintenance, and structural design.

• Mounting height determines coverage: Taller poles can illuminate larger areas, but proper fixture selection and spacing are essential for uniform light distribution.

• Installation methods must match the site: Base-mounted poles require appropriately engineered foundations, anchor bolts, and mounting arrangements.

• LED compatibility is essential: The right combination of pole, mounting arm, and LED fixture can improve visibility while reducing unnecessary energy consumption.

• Industrial applications vary: Warehouses, distribution centres, loading bays, parking areas, and security perimeters have different lighting requirements.

• Canadian conditions require careful planning: Wind exposure, snow, ice, temperature changes, and local electrical requirements should all influence the final design.

The bottom line: A properly specified lighting pole isn't simply a support for an LED fixture. It's a critical part of a dependable outdoor lighting system that helps industrial facilities operate safely and efficiently.

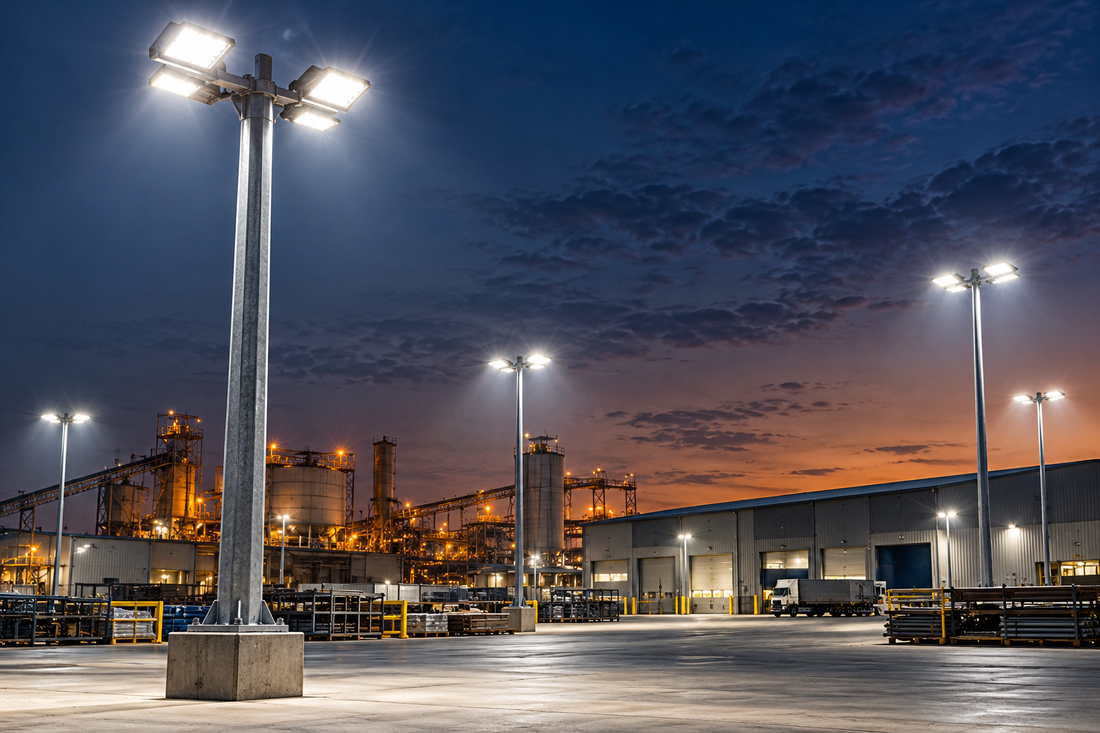

Why Heavy Duty Light Poles Matter for Industrial Facilities

Picture a busy distribution centre after sunset.

Transport trucks are reversing into loading bays. Forklifts are moving between buildings. Employees are crossing outdoor work areas, while security cameras monitor entrances and perimeter fencing.

Now imagine inconsistent lighting across that same facility.

Dark corners make obstacles harder to identify. Poorly positioned floodlights create glare. Uneven illumination reduces visibility where vehicles and pedestrians interact.

This is why industrial site lighting requires a more considered approach than simply installing the brightest available fixtures.

Industrial light poles establish the height, position, and stability needed to distribute illumination across large outdoor spaces.

They allow lighting designers to position luminaires where they can serve specific operational needs, rather than relying entirely on wall-mounted fixtures or existing building structures.

The Role of Lighting Poles in a Complete Industrial Lighting System

A well-designed installation brings together several interconnected elements:

1. Pole height: Establishes the mounting elevation and influences the potential lighting coverage.

2. Pole construction: Provides structural support for the fixtures and accessories.

3. Mounting configuration: Determines how luminaires attach and where they are directed.

4. LED fixture performance: Controls light output, distribution, colour temperature, and energy consumption.

5. Pole placement: Helps minimize shadows, reduce glare, and improve illumination uniformity.

6. Foundation engineering: Ensures the pole is appropriately supported under the applicable site loads.

Each element affects the others.

For example, a taller steel lighting mast might offer useful mounting height for a large logistics yard, but it also requires appropriate structural capacity, foundations, and lighting optics.

Likewise, a shorter aluminum pole may be an excellent solution for a loading bay or access road when paired with properly selected LED luminaires.

For facilities evaluating permanent outdoor installations, LED Network offers a range of commercial and industrial light poles with different heights and mounting configurations.

The objective isn't necessarily to install the tallest or strongest pole available. It's to select a structure that matches the actual lighting requirements of the property.

A successful industrial lighting installation balances structural performance, visibility, durability, and long-term operating costs. No single specification should be considered in isolation.

What Makes a Light Pole Heavy Duty?

The term heavy duty appears frequently in industrial lighting products, but it doesn't represent a universal engineering classification.

A pole shouldn't be considered suitable for demanding environments simply because it's described as industrial-grade or manufactured from metal.

Its actual capabilities depend on several measurable characteristics.

1. Structural Design and Load Capacity

Every outdoor lighting pole must withstand forces created by its own weight, attached equipment, and environmental conditions.

These forces can include:

• Wind pressure acting against the pole shaft

• Wind loads on LED floodlights and mounting arms

• The combined weight of luminaires and accessories

• Bending moments generated by mounting configurations

• Site-specific snow and ice effects where applicable

• Additional loads from approved accessories

A lighting pole supporting one compact luminaire may have substantially different structural requirements from a pole carrying multiple high-output floodlights.

This distinction becomes particularly important for industrial floodlight columns installed in exposed yards, open parking areas, and distribution facilities.

The number, size, orientation, and projected surface area of the attached fixtures all influence the structural design.

Important: Pole height and material alone do not establish wind-load capacity. Always verify the manufacturer's structural documentation and obtain appropriate engineering review for the installation location.

2. Pole Material and Corrosion Resistance

Industrial environments expose lighting structures to moisture, airborne contaminants, road salt, and seasonal temperature fluctuations.

Over time, inadequate corrosion protection can compromise appearance and increase maintenance requirements.

Two commonly considered materials are aluminum and galvanized steel.

Aluminum light poles offer natural corrosion resistance and comparatively low weight. They are widely used for commercial exterior lighting, parking areas, access roads, and other applications where their engineered load capacity is suitable.

Galvanized steel lighting columns use a protective zinc coating to help defend the underlying steel against corrosion. Steel can be advantageous in applications requiring particular structural configurations or load capacities.

Neither material is automatically superior for every industrial project.

The appropriate choice depends on structural requirements, environmental exposure, available finishes, maintenance expectations, and total installed cost.

3. Mounting Compatibility

A structurally suitable pole is only useful if it can accommodate the intended lighting equipment.

Industrial installations may require:

• Tenon-mounted LED luminaires

• Single or multiple luminaire arms

• Floodlight mounting brackets

• Area lighting fixtures

• Pole-top mounting accessories

• Manufacturer-approved security equipment attachments

Different mounting systems are not necessarily interchangeable.

A pole designed for a luminaire arm, for example, should not automatically be treated as compatible with a tenon-mounted fixture.

For projects requiring a relatively compact pole with a tenon mounting arrangement, LED Network's 12-foot, 4-inch square aluminum light pole provides a useful product option to evaluate against the project's mounting and structural requirements.

Selecting compatible components at the planning stage helps prevent costly installation changes.

Aluminum vs. Galvanized Steel Light Poles: Which Is Better for Industrial Lighting?

Material selection is one of the first decisions facing facility managers, contractors, and commercial lighting specifiers.

Although galvanized steel lighting poles are often associated with demanding outdoor environments, aluminum is also widely used in permanent commercial and industrial lighting installations.

The right answer depends on what the installation needs to achieve.

Comparing Industrial Lighting Pole Materials

Actual performance varies by product design, manufacturing specifications, installation conditions, and environmental exposure.

Why Aluminum Poles Deserve Consideration

For many Canadian industrial facilities, aluminum offers a practical combination of durability, manageable weight, and corrosion resistance.

This can be particularly valuable for outdoor installations exposed to precipitation, temperature variations, and de-icing salts.

Aluminum's relatively low weight may also simplify certain transportation and handling requirements, although installation equipment and procedures must still be selected for the complete pole assembly.

Consider a warehouse requiring permanent lighting around vehicle access routes and outdoor work areas.

A properly engineered aluminum pole, combined with suitable LED fixtures, may provide the mounting height and illumination coverage needed without requiring a steel structure.

For projects where a higher mounting position is appropriate, LED Network's 20-foot square aluminum light pole with luminaire arm mounting is one option worth considering.

The product's 4-inch square profile and available black, white, and bronze finishes can also help maintain a consistent appearance across commercial properties.

However, the final decision should always be based on the approved fixture configuration, structural capacity, and local installation requirements.

When Galvanized Steel May Be Appropriate

Steel light poles can be particularly useful when a project calls for specific structural designs, larger mounting assemblies, or configurations not available in aluminum.

Hot-dip galvanizing provides corrosion protection through a zinc coating, making galvanized steel a common choice for outdoor infrastructure.

Industrial facilities may consider steel lighting columns for applications involving:

• Large mounting assemblies

• Multiple floodlights

• High mast lighting systems

• Specialized industrial mounting configurations

• Project-specific structural requirements

For installations in coastal environments or locations with substantial industrial contaminants, corrosion protection should be evaluated carefully regardless of the selected material.

Additional coating systems may be appropriate depending on the exposure conditions.

The key consideration is engineering suitability, not simply material preference.

Choosing the Right Light Pole Height for Industrial Site Lighting

Height changes everything.

It influences how far light travels, how evenly it spreads across the ground, how much glare workers experience, and how many poles may be needed to illuminate an industrial property.

But there's a common misconception worth clearing up:

Taller lighting poles don't automatically produce better industrial lighting.

A pole's mounting height must work together with the LED fixture's light distribution, output, aiming angle, and the physical layout of the site.

For example, a 24-foot pole equipped with an incorrectly selected floodlight could produce uneven illumination, excessive glare, or unwanted light spill. Meanwhile, a properly positioned 16-foot pole with suitable LED optics might deliver more useful lighting across a smaller operational area.

The goal is to achieve the required illumination where people and equipment actually need it.

Understanding Common Industrial Lighting Pole Heights

Industrial light poles are available in various heights, with each configuration serving different applications.

The following table provides general planning considerations rather than fixed design rules.

These are illustrative applications. Actual suitability depends on the pole's rated capacity, fixture selection, site geometry, and applicable lighting requirements.

10–12 Foot Light Poles: Targeted Illumination for Smaller Areas

Not every industrial facility needs towering lighting masts.

Smaller industrial properties often contain areas where a lower mounting height is more practical.

Think about employee entrances, compact service yards, maintenance access points, and walkways connecting buildings.

These locations benefit from carefully controlled illumination that helps workers identify obstacles without directing unnecessary light toward neighbouring properties.

A shorter industrial light pole can also provide useful mounting flexibility where nearby structures, overhead obstructions, or site boundaries limit installation options.

For example, LED Network's 10-foot square aluminum light pole with tenon mount offers a compact mounting option in black, white, and bronze.

When paired with a compatible luminaire and suitable lighting design, this height may be considered for smaller exterior areas requiring focused illumination.

However, lower mounting heights can increase the potential for direct glare if fixtures are poorly positioned.

Proper luminaire shielding, beam selection, and aiming remain essential.

16–20 Foot Light Poles: Versatile Options for Commercial and Industrial Sites

For many commercial properties, the middle range of pole heights provides useful flexibility.

A 16-foot or 20-foot mounting height can be evaluated for parking areas, warehouse surroundings, internal access roads, and selected outdoor work zones.

These heights may allow luminaires to distribute light over a broader area than shorter installations, depending on their optical design.

They can also help reduce the number of mounting locations required in certain layouts, although this should be confirmed through lighting calculations rather than assumed.

Consider a manufacturing facility with an exterior service road running alongside the building.

The lighting system must provide sufficient visibility for drivers, pedestrians, and maintenance personnel while avoiding excessive light directed into adjacent areas.

A carefully positioned series of poles can help create consistent illumination along the route.

For applications requiring a mid-height mounting structure, LED Network offers a 16-foot, 4-inch square aluminum light pole designed for luminaire arm mounting.

As with any permanent installation, the selected luminaire, arm configuration, wind loading, and foundation design must be checked for compatibility.

24-Foot Light Poles: Greater Mounting Height for Expansive Outdoor Areas

Large industrial properties create different lighting challenges.

A distribution centre might have dozens of truck parking spaces, extensive loading areas, and open storage yards extending hundreds of feet from the main building.

Installing numerous low-mounted fixtures throughout these spaces may introduce additional obstructions, maintenance locations, and potential collision hazards.

Higher mounting positions can sometimes help address these challenges by allowing suitable luminaires to cover larger areas.

For facilities considering this approach, LED Network's 24-foot square aluminum light pole with tenon mount provides another height option to evaluate.

At this mounting height, several design considerations become particularly important:

• Wind loading: The complete pole and luminaire assembly must be rated for site conditions.

• Fixture distribution: LED optics should deliver the required illumination without excessive light spill.

• Maintenance access: Facilities need a practical method for servicing elevated luminaires.

• Foundation requirements: Pole height, loads, soil conditions, and anchor-bolt design must be addressed.

• Light uniformity: Wider pole spacing should not create unsafe dark zones between fixtures.

Higher poles can be valuable, but only when the complete lighting system is designed around them.

Practical lighting design principle: Choose mounting height based on the required ground-level illumination, fixture photometrics, structural limitations, and operational needs—not simply the largest available pole.

Industrial Applications: Where Heavy Duty Lighting Poles Make the Biggest Difference

Industrial lighting isn't one-size-fits-all.

A warehouse loading dock, an outdoor storage yard, and a manufacturing plant perimeter might share the same property, but each has different visibility requirements.

Understanding these differences is essential when selecting industrial lighting columns, LED floodlights, and mounting arrangements.

1. Warehouse and Distribution Centre Lighting

Warehouses and distribution centres often operate long after sunset.

Trucks arrive at irregular hours. Employees move between buildings. Loading equipment operates near pedestrian routes, and security personnel need clear visibility around access points.

Poor outdoor lighting can make these activities more difficult and increase operational risk.

A properly planned lighting system should consider:

• Truck approach routes and turning areas

• Loading dock entrances

• Trailer parking and staging zones

• Employee walkways

• Exterior storage locations

• Security checkpoints

• Building access doors

Industrial yard lighting poles help position luminaires above operational areas, allowing illumination to reach locations that wall-mounted fixtures may not adequately cover.

However, placement matters.

A poorly positioned pole can interfere with vehicle circulation, while an incorrectly aimed luminaire may shine directly toward approaching drivers.

Lighting designers should consider the normal movement of trucks, forklifts, and personnel before determining pole locations.

2. Manufacturing Plants and Factory Exterior Lighting

Manufacturing facilities frequently contain a mixture of industrial buildings, service roads, machinery areas, and outdoor storage spaces.

These environments can be challenging because lighting requirements change considerably from one location to another.

A pedestrian walkway might need controlled, comfortable illumination, while an outdoor equipment-handling area could require higher visibility for detailed operational tasks.

Heavy duty floodlight poles can provide elevated mounting positions for fixtures serving these larger working areas.

In practice, the design should account for:

1. The type of work being performed

2. Vehicle and pedestrian movement

3. Equipment dimensions and potential obstructions

4. Required horizontal and vertical illumination

5. Glare and shadow control

6. Environmental exposure

7. Maintenance accessibility

Factories with tall outdoor machinery or material storage racks may also need to consider how these structures obstruct light.

Simply increasing luminaire wattage won't necessarily solve the problem.

Sometimes, adjusting pole positions or adding carefully aimed fixtures is more effective.

3. Industrial Storage Yards and Outdoor Material Handling

Outdoor storage yards present a particular challenge: their layouts often change.

Materials are moved, stacked, removed, and replaced. Storage containers may occupy different positions throughout the year.

Lighting systems must accommodate these changing conditions without leaving important working areas in darkness.

Industrial floodlight columns positioned around the yard perimeter may provide broad illumination while keeping pole foundations away from the busiest vehicle routes.

Alternatively, strategically positioned poles within a large property may help improve uniformity.

The best arrangement depends on the yard's dimensions, storage heights, equipment movements, and lighting objectives.

For these environments, the design should prioritize:

• Visibility between stored materials

• Adequate lighting along vehicle routes

• Reduced shadows around storage stacks

• Clear identification of obstacles

• Protection of poles from vehicle impact

• Reliable illumination during early-morning and nighttime operations

One often-overlooked consideration is physical pole protection.

Even a structurally robust steel or aluminum light pole may be vulnerable to collisions involving heavy vehicles.

Where poles are installed near truck routes or material-handling operations, protective bollards or other suitable barriers may be necessary.

The exact protection strategy should be determined through a site-specific risk assessment.

4. Industrial Parking Lots and Heavy Vehicle Areas

Industrial parking facilities may accommodate passenger vehicles, commercial vans, transport trucks, trailers, and specialized equipment.

This creates a wider range of visibility requirements than a typical small commercial parking lot.

Lighting needs to support vehicle navigation, pedestrian movement, and recognition of potential hazards.

Commercial lighting poles can help provide consistent illumination across parking spaces and circulation routes when paired with suitable LED area lights.

Important design considerations include:

Parking lot lighting should also account for neighbouring buildings, public roads, and property boundaries.

Poorly directed fixtures can create unwanted light trespass or distracting glare.

Using appropriate luminaire optics and thoughtful pole placement can help manage these issues.

5. Security Perimeters and Access Control Areas

Security lighting serves a different purpose from general yard illumination.

Its primary objective is to support visibility around entrances, fencing, gates, and other sensitive locations.

Industrial security lighting poles may be positioned to illuminate these areas without creating excessive glare for security personnel or surveillance cameras.

For example, a floodlight aimed directly toward a camera can reduce image quality even if the surrounding area appears brightly illuminated.

A more effective arrangement considers both the lighting distribution and the camera's field of view.

Security lighting design may include:

• Gate and checkpoint illumination

• Fence-line visibility

• Building perimeter coverage

• Vehicle entry and exit areas

• Pedestrian access routes

• Exterior equipment compounds

Where CCTV equipment is installed on lighting poles, the additional weight, projected wind area, vibration sensitivity, and mounting arrangement must be approved for the structure.

A standard luminaire pole should not automatically be assumed suitable for camera mounting.

Wind Resistance and Weather Durability in Canadian Industrial Environments

Canada presents some demanding conditions for permanent outdoor lighting installations.

Depending on the location, industrial sites may experience strong winds, freezing temperatures, heavy snowfall, ice accumulation, road salt exposure, and significant seasonal temperature changes.

These conditions can influence the long-term performance of lighting poles and their foundations.

Understanding Wind Loads on Industrial Light Poles

Wind resistance is one of the most important structural considerations for exterior lighting columns.

When wind moves across a pole, it applies pressure to the shaft and any attached equipment.

Floodlights, mounting arms, and accessories increase the total surface area exposed to wind.

The resulting forces are transferred through the pole to its base and foundation.

Several factors influence the required structural capacity:

• Geographic location

• Site exposure and surrounding terrain

• Pole height and geometry

• Luminaire dimensions

• Mounting arm length

• Number and arrangement of fixtures

• Applicable design wind pressures

• Foundation and anchorage characteristics

An industrial property surrounded by tall buildings may experience different wind conditions from an exposed logistics facility on open terrain.

This is why generic descriptions such as wind resistant or extra heavy duty are not substitutes for engineering documentation.

For Canadian projects, wind and structural design should be evaluated against the applicable building codes, local requirements, and manufacturer specifications.

The required design criteria may vary by province, municipality, and project.

Why Luminaire Windage Matters

Windage refers to the effect of wind acting on exposed surfaces.

For lighting pole design, the projected area and aerodynamic characteristics of the attached luminaires and brackets influence the forces that the pole must resist.

Consider two installations using identical poles.

The first supports one compact LED area light.

The second carries several large industrial floodlights mounted on extended brackets.

Even though the poles are the same height, the second arrangement may impose substantially greater wind-related loads.

This is particularly relevant when specifying industrial floodlight poles with multiple mounting arms.

Before selecting a configuration, confirm the manufacturer's limits for the complete installed assembly.

Snow, Ice, and Freeze-Thaw Conditions

Cold-weather performance involves more than ensuring the LED fixtures operate at low temperatures.

Foundations and mounting components must also be suitable for local conditions.

Potential considerations include:

• Frost depth and soil movement

• Ice accumulation where required by design criteria

• Moisture ingress around electrical connections

• Thermal expansion and contraction

• Corrosion associated with de-icing salts

• Drainage around pole foundations

Improperly designed foundations can experience movement due to freezing and thawing soil conditions.

Over time, this may affect alignment or structural performance.

Foundation depth, concrete specifications, reinforcement, anchor bolts, and drainage should therefore be determined by qualified professionals familiar with local conditions.

Corrosion Protection for Long-Term Reliability

Corrosion resistance is especially important for facilities exposed to moisture, industrial pollutants, or winter road treatments.

Galvanized lighting poles rely on their zinc coating for protection, while aluminum poles benefit from the metal's naturally occurring oxide layer.

Protective finishes may provide additional benefits, but their performance depends on the material, coating process, environmental conditions, and maintenance.

Regular inspections remain important regardless of the pole material.

Facilities should monitor for coating damage, loose hardware, unusual movement, and signs of deterioration around the base.

A well-maintained industrial lighting structure can provide dependable service for many years, but its actual service life depends on the product design and operating environment.

Mounting Methods for Heavy Duty Industrial Light Poles

A lighting pole can be manufactured from high-quality materials, engineered for demanding outdoor conditions, and paired with an excellent LED fixture. But without the correct mounting system, the installation may still fail to perform as intended.

The connection between the pole, its foundation, and its lighting equipment is just as important as the pole itself.

Industrial lighting installations generally use mounting configurations designed around specific structural and operational requirements. Understanding these options helps facility managers and contractors avoid compatibility issues, installation delays, and unnecessary costs.

Base Plate Mounted Light Poles

Base plate mounting is commonly used for permanent commercial and industrial lighting installations.

In this arrangement, the pole has a mounting plate at its base, which is secured to an engineered concrete foundation using anchor bolts.

The foundation transfers structural loads into the supporting ground.

A typical base-mounted lighting installation includes:

1. Concrete foundation: Designed for the expected structural loads and local soil conditions.

2. Anchor bolts: Positioned according to the approved bolt pattern and foundation design.

3. Pole base plate: Connects the lighting pole to the foundation.

4. Levelling components: Used where specified to establish the correct pole alignment.

5. Electrical connections: Routed through the approved cable entry and access arrangements.

6. Protective hardware: Installed according to the manufacturer's requirements.

Base plate mounting is particularly useful for industrial yards, parking facilities, warehouse surroundings, and other locations requiring permanent exterior lighting.

However, not all base plates use the same dimensions or anchor bolt patterns.

Before installation, contractors must confirm that the foundation and anchorage match the selected pole's approved drawings.

Direct Burial and Root-Mounted Lighting Columns

Direct burial lighting poles, sometimes called root-mounted lighting columns, use a different installation approach.

Instead of attaching the pole to a separate anchor-bolt assembly, a designated portion of the pole extends below ground.

The buried section is installed using a foundation method specified for the pole and site conditions.

This configuration can be suitable for certain exterior lighting projects, but it requires careful attention to:

• Burial depth

• Ground conditions

• Drainage

• Corrosion protection

• Backfill or concrete requirements

• Electrical cable routing

• Local frost conditions

Direct burial poles and base plate mounted poles are not automatically interchangeable.

Each requires its own structural and installation considerations.

For Canadian industrial sites, the selection should account for frost penetration, soil bearing capacity, wind exposure, and applicable engineering requirements.

Tenon Mounts and Luminaire Arms

The connection at the top of a light pole also deserves attention.

Two common arrangements are tenon mounting and luminaire arm mounting.

Tenon mounting uses a projecting mounting section designed to accept compatible lighting equipment or adapters.

Luminaire arm mounting uses a bracket or arm to position the fixture away from the pole shaft.

Both configurations can support effective outdoor lighting when properly matched to the intended luminaires.

For industrial floodlighting, mounting configuration can have a significant influence on how effectively light reaches the intended work area.

An extended mounting arm may help position a luminaire over a roadway or parking area, while a suitable floodlight bracket may allow more precise aiming toward storage yards or building perimeters.

The best configuration depends on the site layout and approved equipment specifications.

Foundation Design and Installation Requirements

An industrial light pole is only as dependable as the foundation supporting it.

This becomes especially important for taller poles installed in open areas where wind forces can be substantial.

A properly engineered foundation must accommodate the loads transferred from the complete pole and luminaire assembly.

What Determines the Foundation Requirements?

Several variables influence foundation design.

Pole height and structural loads: Taller poles and larger fixture assemblies can create greater overturning moments.

Ground conditions: Soil bearing capacity, groundwater, fill material, and frost susceptibility can affect foundation performance.

Wind exposure: Open industrial yards may experience different wind pressures from sheltered commercial properties.

Anchor bolt configuration: Bolt diameter, spacing, embedment, and material specifications must match the approved design.

Local construction requirements: Foundations must satisfy applicable codes and project engineering requirements.

There is no universal foundation size that works for every industrial lighting pole.

A foundation suitable for a shorter commercial light pole may be inadequate for a taller pole carrying multiple industrial floodlights.

Installation Checklist for Contractors

Before installing a permanent lighting pole, confirm the following:

• Pole height and structural specifications match the approved design.

• Luminaire and bracket loads are within the manufacturer's permitted limits.

• Foundation design reflects the local soil and environmental conditions.

• Anchor bolt pattern matches the pole base plate.

• Electrical conduit and cable entry positions are coordinated.

• Pole placement avoids underground utilities and operational hazards.

• Appropriate lifting equipment and installation procedures are available.

• Required permits, inspections, and electrical approvals are addressed.

• Final pole alignment, fastener installation, and electrical connections are inspected.

Electrical work should be completed by appropriately qualified personnel in accordance with the applicable Canadian Electrical Code requirements and local regulations.

Structural design and foundation requirements should be reviewed by qualified professionals where required.

Installation tip: Never select foundation dimensions solely from a pole's nominal height. The complete lighting assembly, environmental loads, and site conditions determine the foundation requirements.

Pairing Industrial Light Poles with the Right LED Floodlights

The pole provides the structure.

The LED fixture provides the illumination.

Neither component can deliver an effective industrial lighting system without the other being properly selected.

A common mistake is to focus almost entirely on fixture wattage while overlooking light distribution, mounting height, and pole spacing.

A high-wattage LED floodlight may produce substantial light output, but that doesn't guarantee useful illumination across the intended area.

Lumens vs. Watts: Understanding the Difference

Watts measure electrical power consumption.

Lumens measure the total quantity of visible light emitted by a source.

For industrial lighting projects, both values matter, but they answer different questions.

• Wattage: How much electrical power does the fixture consume?

• Lumens: How much visible light does the fixture produce?

• Efficacy: How efficiently does the fixture convert electrical power into visible light, measured in lumens per watt?

• Lux: How much luminous flux reaches a given surface area?

• Uniformity: How evenly is illumination distributed across the area?

Consider two LED fixtures that consume the same amount of electricity.

One may produce more lumens because it has higher luminous efficacy.

However, even the more efficient fixture could be unsuitable if its optical distribution directs light away from the required work areas.

This is why industrial lighting design should evaluate both luminaire performance and the arrangement of the mounting poles.

Why Beam Angle and Light Distribution Matter

Industrial facilities contain a mixture of open spaces, narrow access routes, building entrances, and vehicle manoeuvring areas.

Different locations benefit from different lighting distributions.

A narrow beam may be appropriate for certain long-distance or targeted floodlighting applications.

A wider distribution may help illuminate a broader area from a suitable mounting height.

Asymmetric optics can direct illumination toward a working area while limiting unnecessary light behind the fixture.

The objective is to place useful light where it is required.

For example:

The appropriate beam distribution should be selected using the manufacturer's photometric data and the project's lighting requirements.

Using Photometric Lighting Plans

A photometric lighting plan models how light from selected fixtures is expected to reach the surfaces and areas being illuminated.

These plans help designers evaluate:

1. Required illumination levels

2. Pole positions

3. Mounting heights

4. Luminaire quantities

5. Fixture orientation

6. Light distribution patterns

7. Illumination uniformity

8. Potential glare and light spill

For larger industrial projects, photometric analysis can help prevent overlighting, underlighting, and inefficient fixture placement.

It may also identify opportunities to reduce the number of fixtures or poles without compromising the design objectives.

A well-planned lighting layout can be more effective than simply installing additional high-output floodlights.

Energy Efficiency and Long-Term Operating Costs

Industrial exterior lighting often operates for extended periods.

Some facilities require illumination throughout the night, while others operate around the clock.

As a result, even modest differences in lighting efficiency can affect long-term electricity costs.

LED technology offers important advantages over many older lighting systems, particularly when replacing less efficient equipment.

However, the financial benefits depend on fixture efficacy, operating hours, electricity rates, controls, maintenance requirements, and the existing installation.

How LED Lighting Can Reduce Energy Consumption

Modern LED luminaires can deliver useful light output while consuming less electrical power than many older high-intensity discharge lighting systems.

They can also offer advantages in directional light control and compatibility with modern lighting controls.

For example, consider a hypothetical industrial site replacing 20 older 400-watt lighting fixtures with 20 LED fixtures rated at 150 watts each.

Assuming both systems operate for 12 hours per day:

Illustrative annual electricity reduction: 21,900 kWh.

At an assumed electricity rate of $0.15 per kWh, this represents approximately $3,285 in annual electricity savings.

These figures are illustrative and exclude driver or ballast losses, demand charges, maintenance costs, and other site-specific factors. The replacement fixtures must also be verified to provide suitable illumination.

Actual savings will vary.

Lighting Controls for Industrial Facilities

Energy savings can also come from using lighting controls appropriately.

Depending on operational requirements, industrial exterior lighting systems may incorporate:

• Photocells for dusk-to-dawn operation

• Programmable lighting schedules

• Occupancy or motion-based controls

• Dimming systems

• Networked lighting management

• Zoned lighting controls

For example, a distribution centre may require full illumination around active loading bays while allowing selected low-traffic areas to operate at reduced output during quieter periods.

Controls should be designed carefully so that energy savings do not compromise workplace safety, security, or visibility.

Why Pole Selection Influences Total Project Cost

Lighting pole costs extend beyond the initial purchase price.

A complete installation may involve:

• Pole supply

• Shipping and handling

• Concrete foundations

• Excavation

• Electrical infrastructure

• Mounting brackets

• LED fixtures

• Installation labour

• Inspection and commissioning

• Long-term maintenance

Pole height and placement can influence several of these costs.

For example, a design using fewer, taller poles may reduce the number of foundations but require more substantial structures and specialized maintenance access.

A design using additional shorter poles may involve more foundations and electrical connections but provide advantages in certain site layouts.

Neither approach is universally less expensive.

The most economical solution is the one that meets the project's lighting and structural requirements at an appropriate total lifecycle cost.

Maintenance and Inspection of Industrial Lighting Poles

Heavy duty lighting columns are designed for long-term outdoor use, but they should never be treated as maintenance-free structures.

Industrial sites expose lighting equipment to vibration, vehicle activity, moisture, wind, airborne contaminants, and seasonal weather changes.

Regular inspections help identify developing issues before they become serious.

What Should Be Inspected?

Maintenance personnel should pay particular attention to:

Pole bases and foundations: Look for visible cracking, unusual movement, damaged concrete, corrosion, or signs of impact.

Mounting hardware: Check for missing, loose, or damaged components using the manufacturer's inspection procedures.

Pole surfaces: Examine coatings, finishes, and exposed materials for deterioration.

Luminaire brackets: Look for visible damage, misalignment, or unusual movement.

Electrical access points: Ensure covers and protective components remain secure and in good condition.

LED fixtures: Monitor for failed luminaires, moisture ingress, flickering, or changes in performance.

When Should Inspections Take Place?

Inspection frequency depends on the installation, manufacturer recommendations, local requirements, and environmental exposure.

Additional inspections may be appropriate following severe weather, suspected vehicle impacts, or other unusual events.

If a pole appears bent, unstable, severely corroded, or structurally damaged, the surrounding area should be made safe and the installation assessed by qualified personnel.

Electrical components should not be opened or serviced without appropriate safety procedures.

Preventive maintenance helps protect both the lighting investment and the people working around it.

Common Mistakes to Avoid When Buying Industrial Light Poles

Selecting industrial lighting equipment can become complicated when a project involves multiple contractors, suppliers, fixture types, and site requirements.

Fortunately, many expensive mistakes can be avoided through careful planning.

Mistake 1: Choosing Pole Height Without a Lighting Design

Selecting a 20-foot or 24-foot pole because it appears suitable for a large yard isn't enough.

The mounting height should be supported by photometric calculations and the site's operational requirements.

Mistake 2: Ignoring Wind Load Ratings

A pole must be suitable for the complete luminaire and mounting assembly.

Adding more floodlights or longer brackets can change the structural loads substantially.

Always verify the approved configuration.

Mistake 3: Assuming All Mounting Systems Are Compatible

Tenon mounts, luminaire arms, and floodlight brackets serve different purposes.

Check dimensions, attachment methods, and load limits before purchasing equipment.

Mistake 4: Overlooking Foundation Engineering

Even a well-manufactured pole can experience problems if its foundation is inadequate.

Ground conditions, frost, wind loads, and anchorage must be considered.

Mistake 5: Using Wattage as the Only Lighting Specification

A high-wattage fixture doesn't guarantee good visibility.

Light distribution, glare, uniformity, and fixture placement are equally important.

Mistake 6: Forgetting About Vehicle Impact Risks

Industrial yards frequently accommodate large vehicles and material-handling equipment.

Poles installed near traffic routes may require protective barriers or revised positioning.

Mistake 7: Ignoring Long-Term Maintenance Access

Fixtures mounted at greater heights may require specialized equipment for inspection and replacement.

Maintenance access should be considered during the initial design.

How to Choose the Right Heavy Duty Light Poles: Buyer's Checklist

Before purchasing industrial lighting poles, use the following checklist to guide the specification process.

Site and Application

• Identify the areas requiring illumination.

• Determine vehicle and pedestrian traffic patterns.

• Establish the operating hours.

• Identify security lighting requirements.

• Review nearby structures and obstructions.

Pole Specifications

• Select an appropriate mounting height.

• Compare aluminum and steel options.

• Confirm structural and wind-load capacity.

• Verify the pole's mounting configuration.

• Review corrosion protection and available finishes.

• Confirm fixture and bracket compatibility.

Lighting Design

• Establish the required illumination levels.

• Select suitable LED fixtures.

• Review photometric calculations.

• Evaluate glare and light spill.

• Determine appropriate pole spacing.

• Consider lighting controls and energy efficiency.

Installation and Maintenance

• Confirm foundation engineering requirements.

• Verify anchor bolt specifications.

• Coordinate electrical infrastructure.

• Eeview local permits and code requirements.

• Plan maintenance access.

• Consider vehicle impact protection.

• Establish an inspection and maintenance schedule.

Completing these steps before purchasing can help reduce installation problems and ensure the selected poles are appropriate for the intended application.

Frequently Asked Questions About Industrial Lighting Poles

What is the best height for industrial light poles?

There is no single best height for every industrial property.

Mounting heights of approximately 12 to 24 feet may be considered for many commercial and industrial applications, while larger facilities may require taller structures.

The correct height depends on the area being illuminated, fixture photometrics, structural requirements, and site layout.

Are aluminum light poles strong enough for industrial applications?

Yes, appropriately engineered aluminum poles can be suitable for many industrial lighting installations.

Their suitability depends on the specific pole design, wind-load capacity, mounting arrangement, and environmental conditions.

Aluminum should not be considered structurally adequate solely because it is marketed for industrial use.

Are galvanized steel poles better than aluminum poles?

Neither material is automatically better.

Galvanized steel offers particular structural and corrosion-protection characteristics, while aluminum provides natural corrosion resistance and relatively low weight.

The best material depends on the project's engineering requirements, environment, maintenance expectations, and available product configurations.

Can heavy duty light poles support multiple LED floodlights?

Some lighting poles are designed to accommodate multiple luminaires, but not all.

The total fixture weight, mounting arrangement, projected wind area, and structural loads must remain within the manufacturer's approved limits.

Never add additional floodlights without verifying the pole's capacity.

How far apart should industrial light poles be installed?

Pole spacing depends on mounting height, LED fixture distribution, required illumination levels, and site geometry.

There is no universally correct spacing distance.

A photometric lighting plan is the most reliable way to determine an appropriate layout.

Do industrial light poles need concrete foundations?

Many permanent industrial lighting poles use engineered concrete foundations, particularly base plate mounted designs.

However, some poles use direct burial or other approved installation systems.

Foundation requirements depend on the pole configuration, site conditions, and applicable engineering standards.

Can lighting poles be used for CCTV cameras?

Certain poles can accommodate CCTV equipment when specifically designed or approved for the additional loads and mounting requirements.

Camera weight, wind loading, vibration, and mounting height should all be considered.

A standard lighting pole should not automatically be assumed suitable for surveillance equipment.

What type of LED lighting works best for industrial yards?

Industrial yards may use LED area lights, floodlights, or other outdoor luminaires depending on the application.

The most suitable fixtures provide the required illumination, appropriate light distribution, controlled glare, and compatibility with the mounting system.

How long do industrial lighting poles last?

Service life varies according to the pole material, structural design, corrosion protection, environmental exposure, installation quality, and maintenance.

Properly specified and maintained poles can provide many years of service, but no universal lifespan should be assumed.

Are heavy duty lighting poles suitable for Canadian winters?

Properly engineered lighting poles can be used in Canadian winter conditions.

The design should account for applicable wind, ice, frost, corrosion, and temperature-related requirements, along with suitable foundations and electrical equipment.

Final Thoughts: Build Industrial Lighting on the Right Foundation

Reliable industrial lighting begins long before the first LED fixture is switched on.

It starts with understanding the site.

How do vehicles move through the property? Where do employees work after dark? Which areas require consistent visibility? How exposed is the location to wind and severe weather?

These questions determine the lighting design—and ultimately the structures needed to support it.

Heavy duty light poles are essential components of permanent industrial lighting systems, providing elevated mounting positions for luminaires across warehouses, distribution centres, outdoor storage yards, parking areas, and security perimeters.

But selecting the right poles requires a balanced approach.

Material, mounting height, structural capacity, fixture compatibility, foundation design, and maintenance access must work together.

Aluminum light poles can offer a durable, corrosion-resistant solution for many commercial and industrial installations. Galvanized steel lighting columns may be appropriate for other structural configurations and project requirements.

Neither option should be selected on appearance or price alone.

At LED Network, our focus is on providing our own-brand lighting products and pole options for commercial and industrial applications. Choosing compatible components and verifying their suitability for the intended site are essential steps toward a dependable installation.

Whether you're planning exterior lighting for a warehouse, upgrading an industrial parking area, or designing illumination for a new logistics facility, take the time to evaluate the complete system.

The right pole supports more than a light fixture. It supports visibility, operational efficiency, and the long-term reliability of your industrial lighting investment.
